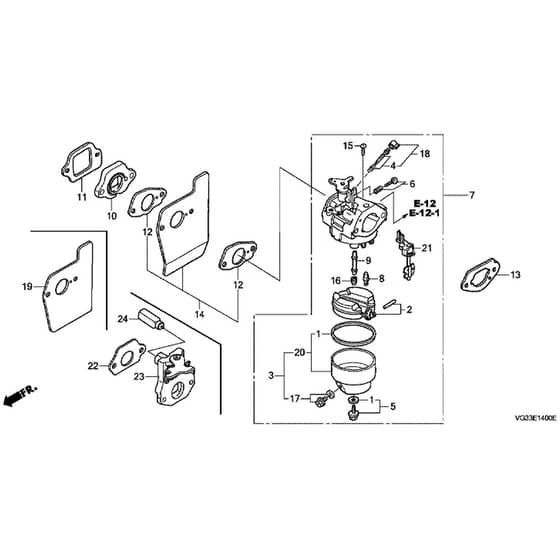

Honda HRS536C-PDE - Carburettor Diagram

Name: Honda HRS536C-PDE - Carburettor Diagram
SKU: hrs536c_pde_carburettor-group
Price: 1.93 GBP
Availability: InStock

Part No. hrs536c_pde_carburettor-group

Description

Honda HRS536C-PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-883-015 In stock	1 Gasket Set	£13.36 £11.13
2	HP16013-ZL1-003 Available to backorder	2 Float Set	£36.44 £30.37
3	HP16015-887-782 Available to backorder	3 Float Bowl Set	£45.56 £37.97
4	HP16016-892-005 Available to backorder	4 Screw Set	£12.04 £10.03
5	HP16028-ZK7-S91 In stock	5 Screw Set	£14.34 £11.95
6	HP16029-ZG0-901 Available to backorder	6 Throttle Stop Screw Set	£14.30 £11.92
7	HP16100-Z0L-023 In stock	7 Carburettor Assy	£106.64 £88.87
8	HP16155-ZM0-003 Available to backorder	8 Float Valve	£37.14 £30.95
9	HP16166-ZM0-003 Available to backorder	9 Main Nozzle	£38.39 £31.99
10	HP16211-ZL8-000 In stock	10 Carburettor Insulator	£5.21 £4.34
11	HP16212-ZL8-000 In stock	11 Insulator Gasket	£3.07 £2.56
12	HP16221-883-800 In stock	12 Carburettor Gasket	£2.46 £2.05
13	HP16228-ZL8-000 In stock	13 Carburettor Gasket	£3.14 £2.62
14	HP19650-ZM0-000 In stock	14 Air Guide Assy	£12.07 £10.06
15	HP93500-050-060H Available to backorder	15 Pan Screw	£2.32 £1.93
16	HP99101-1240600 Available to backorder	16 Main Jet	£12.34 £10.28
16	HP99101-1240620 Available to backorder	16 Main Jet	£12.34 £10.28
16	HP99101-1240650 Available to backorder	16 Jet	£12.34 £10.28
17	HP16024-ZE1-811 Available to backorder	17 Drain Screw Set	£13.69 £11.41
18	HP16016-ZG0-W00 Available to backorder	18 Screw Set	£13.69 £11.41
20	HP16015-892-505 Available to backorder	20 Float Bowl Set	£55.67 £46.39
