Honda HRN536C1 - VYEA - Handle Pipe Diagram

Description

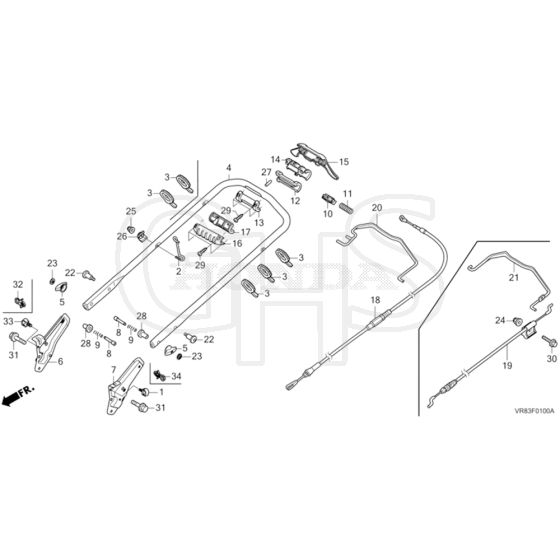

Honda HRN536C1 - VYEA Rotary Mower Parts Diagram

	Part No.	Details
2	HP28475-VR8-N00 Available to backorder	Rope Guide	£6.08 £5.07
3	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
3	HP32901-VK7-000 Available to backorder	Cable Tie	£6.20 £5.17
4	HP53111-VR8-M00ZA Available to backorder	Handle	£135.00 £112.50
5	HP53125-VR8-N00ZA In stock	Handle Grip	£21.55 £17.96
6	HP53130-VR8-N00 Available to backorder	Handle Stay	£53.38 £44.48
7	HP53135-VR8-N00 Available to backorder	Handle Stay	£53.38 £44.48
8	HP53158-VR8-N00 In stock	Pin	£2.66 £2.22
9	HP53367-VR8-N00 In stock	Handle Spring	£2.52 £2.10
10	HP54315-VR8-N00 Available to backorder	Lever	£7.78 £6.48
11	HP54411-VH7-L00 Available to backorder	Select Lever Spring	£0.72 £0.60
12	HP54434-VL0-B00 Available to backorder	Upper Grip Bracket	£5.71 £4.76
13	HP54437-VL0-B00 Available to backorder	Lower Grip Bracket	£5.26 £4.38
14	HP54442-VL0-P00 In stock	Upper Bracket Cover	£3.35 £2.79
15	HP54443-VR8-N00ZA Available to backorder	Upper Clutch Grip	£39.64 £33.03
16	HP54446-VR8-N00ZA Available to backorder	Lower Clutch Grip	£27.60 £23.00
17	HP54447-VL0-P00 In stock	Lower Bracket Cover	£4.33 £3.61
18	HP54510-VR8-N00 Available to backorder	Clutch Cable	£42.83 £35.69
20	HP75161-VR8-M00ZA Available to backorder	Roto-Stop Lever	£53.92 £44.93
22	HP90103-VR8-N00 In stock	Bolt	£10.68 £8.90
23	HP90301-VR8-N01 In stock	Push Nut	£2.64 £2.20
25	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
26	HP90501-V25-000 Available to backorder	Frame Washer	£13.14 £10.95
27	HP91151-VH7-H50 Available to backorder	Roller 5 X 37.3	£4.32 £3.60
28	HP91552-VR8-N00 In stock	Collar	£3.32 £2.77
29	HP93911-14280 Available to backorder	Self Tapping Screw	£1.86 £1.55
31	HP95701-08014-07 Available to backorder	Bolt	£1.20 £1.00
32	HP30701-887-791 Available to backorder	Clip	£2.86 £2.38
