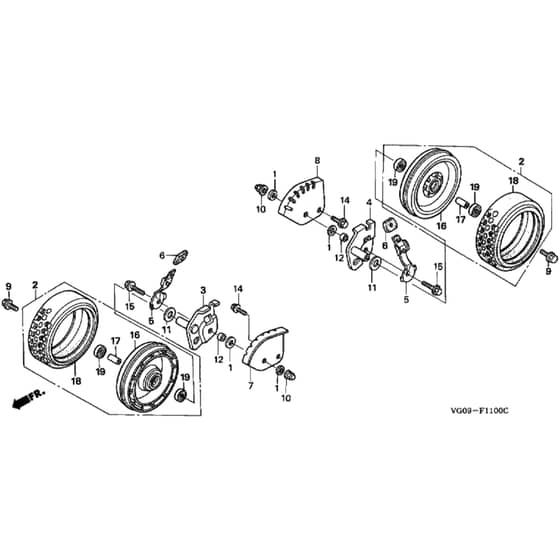

Honda HRH536K4 - QXEH - MZBU 8300001- Front Wheel Diagram

Name: Honda HRH536K4 - QXEH - MZBU 8300001- Front Wheel Diagram
SKU: hrh536k4_qxeh_mzbu_8300001_front_wheel-group
Price: 0.99 GBP
Availability: InStock

Part No. hrh536k4_qxeh_mzbu_8300001_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRH536K4 - QXEH - MZBU 8300001- Front Wheel Diagram

Description

Honda HRH536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP40213-041-730 In stock	Washer 42 X 8.5	£20.86 £17.38
3	HP42911-VG0-000 Available to backorder	Adjuster Arm Front R H	£29.26 £24.38
4	HP42921-VG0-000 Available to backorder	Adjuster Arm Front L H	£28.60 £23.83
5	HP42951-VF0-000 In stock	Front Adjuster Plate	£13.16 £10.97
6	HP42952-VA3-E40 In stock	Adjuster Grip	£2.08 £1.73
7	HP42981-VG0-850 Available to backorder	Front Adjuster Panel R H	£21.90 £18.25
8	HP42982-VG0-850 Available to backorder	Front Adjuster Panel L H	£21.90 £18.25
9	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
10	HP90115-659-003 In stock	Nut	£1.19 £0.99
11	HP90510-KY1-000 Available to backorder	Tank Mounting Washer	£3.76 £3.13
12	HP91554-VG0-000 Available to backorder	Collar 12 X 6	£3.00 £2.50
14	HP95701-0802500 Available to backorder	Flange Bolt 8 X 25	£2.03 £1.69
15	HP95701-0804500 Available to backorder	Flange Bolt 8 X 45	£2.29 £1.91
16	HP42710-VB5-F41ZB Available to backorder	Front Wheel Assy	£121.32 £101.10
17	HP42759-VB5-F40 Available to backorder	Collar	£13.97 £11.64
18	HP42861-VB5-802 Available to backorder	Tyre	£72.00 £60.00
19	HP96150-6002010 Available to backorder	Bearing	£24.17 £20.14
