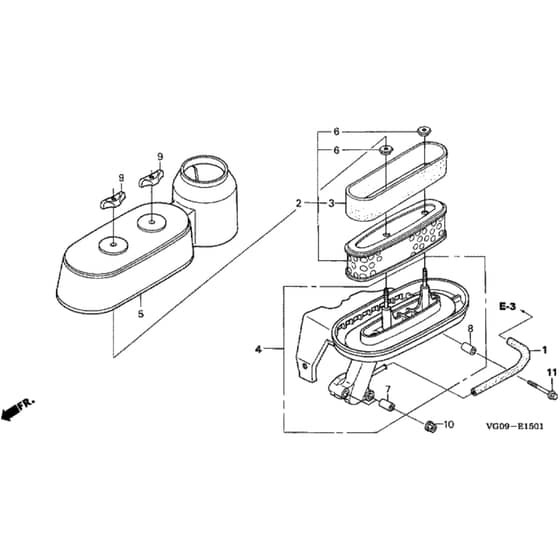

Honda HRH536K4 - QXEH - MZBU 8300001- Air Cleaner Diagram

Description

Honda HRH536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP15721-ZE7-000 Available to backorder	Breather Tube	£8.42 £7.02
2	HP17210-Z1V-003 Available to backorder	Air Filter	£33.73 £28.11
3	HP17218-888-003 In stock	Outer Filter	£6.77 £5.64
4	HP17220-Z1V-010 In stock	Air Filter Case Assy	Was £52.13 £43.44 Special Price £36.58 £30.48
5	HP17231-Z1V-000 Available to backorder	Air Filter Cover	£46.88 £39.07
6	HP17232-891-000 Available to backorder	Grommet	£5.98 £4.98
7	HP17238-ZE7-710 Available to backorder	Air Filter Collar	£5.14 £4.28
8	HP17239-ZE6-300 Available to backorder	Air Filter Collar	£3.71 £3.09
9	HP90300-Z1V-000 Available to backorder	Air Filter Nut	£9.17 £7.64
10	HP94050-06000 In stock	Flange Nut 6Mm	£3.37 £2.81
11	HP95701-0603500 Available to backorder	Flange Bolt 6 X 35	£1.12 £0.93
