Honda HRH536K3 - QXE - MZBU 8200001-8299999 Recoil Starter (2) Diagram

Description

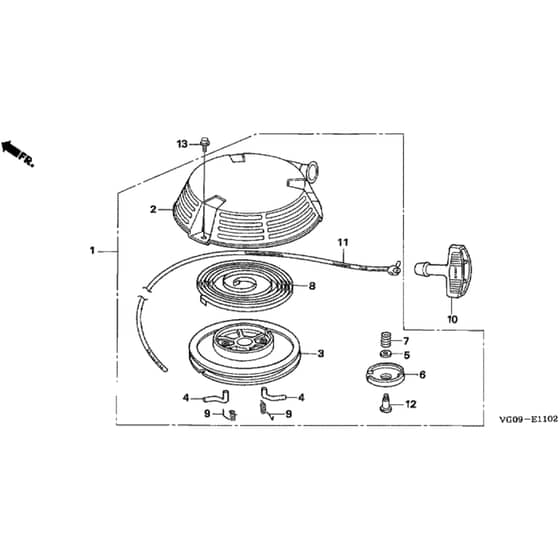

Honda HRH536K3 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-Z1V-J52ZA In stock	Starter Recoil Assy	£117.00 £97.50
2	HP28410-Z1V-003ZA In stock	Recoil Starter Case	Was £159.32 £132.77 Special Price £95.99 £79.99
3	HP28420-Z1V-003 Available to backorder	Recoil Pulley	£37.10 £30.92
4	HP28422-ZH8-801 Available to backorder	Starter Pawl	£8.18 £6.82
5	HP28431-ZH8-801 In stock	Friction Plate	£6.37 £5.31
6	HP28433-ZH8-801 In stock	Ratchet Guide	£10.39 £8.66
7	HP28441-ZH8-801 In stock	Friction Spring	£6.07 £5.06
8	HP28442-ZH8-003 Available to backorder	Recoil Spring	£27.55 £22.96
9	HP28443-ZH8-801 Available to backorder	Return Spring	£5.10 £4.25
10	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.34 £5.28
11	HP28462-Z1V-801 Available to backorder	Recoil Starter Rope	£21.13 £17.61
12	HP90003-ZH8-801 In stock	Setting Screw	£7.40 £6.17
13	HP95701-0600800 In stock	Flange Bolt 6X8	£1.31 £1.09
