Honda HRH536K3 - HXE - MZBU 8200001-8299999 Recoil Starter (2) Diagram

Name: Honda HRH536K3 - HXE - MZBU 8200001-8299999 Recoil Starter (2) Diagram
SKU: hrh536k3_hxe_mzbu_8200001_8299999_recoil_starter_2_-group
Price: 1.14 GBP
Availability: InStock

Part No. hrh536k3_hxe_mzbu_8200001_8299999_recoil_starter_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRH536K3 - HXE - MZBU 8200001-8299999 Recoil Starter (2) Diagram

Description

Honda HRH536K3 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP28400-Z1V-J52ZA In stock	Starter Recoil Assy	£117.00 £97.50
2	HP28410-Z1V-003ZA In stock	Recoil Starter Case	Was £159.32 £132.77 Special Price £95.99 £79.99

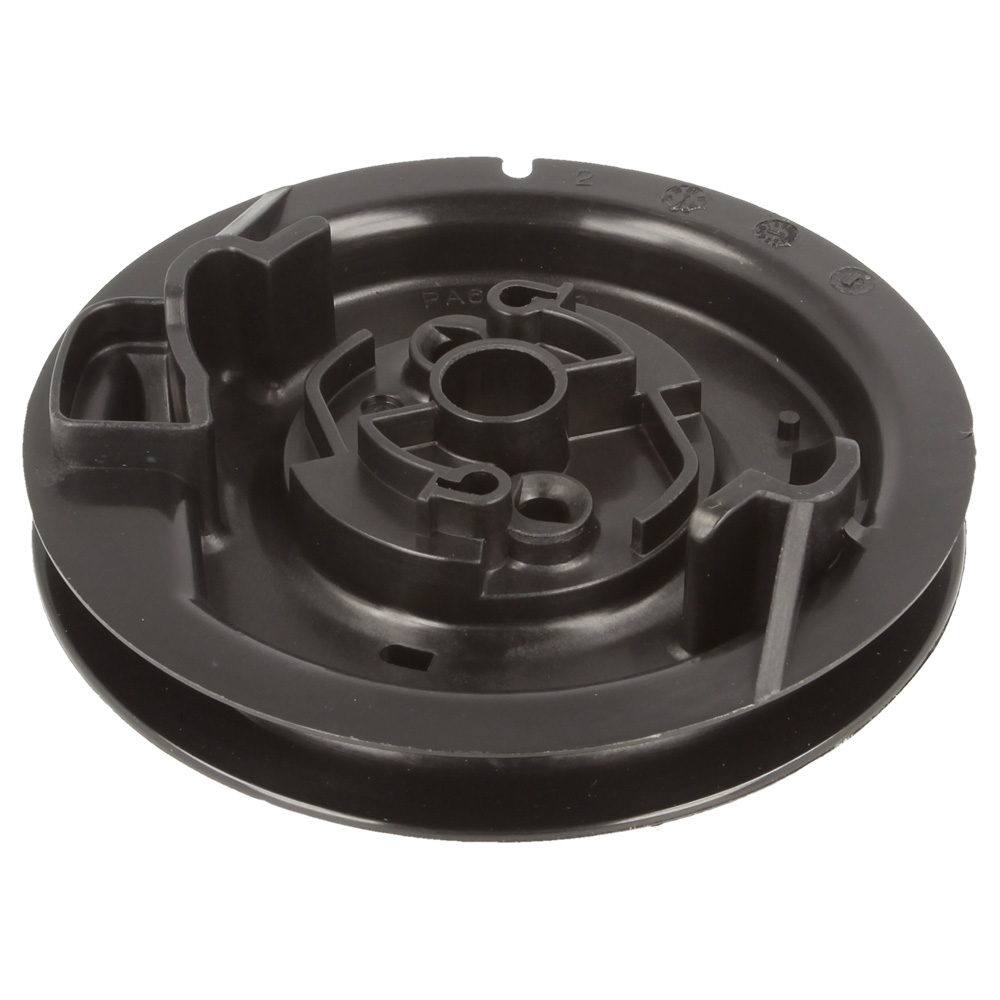

3	HP28420-Z1V-003 Available to backorder	Recoil Pulley	£37.44 £31.20
4	HP28422-ZH8-801 Available to backorder	Starter Pawl	£8.26 £6.88
5	HP28431-ZH8-801 In stock	Friction Plate	Was £6.37 £5.31 Special Price £5.10 £4.25
6	HP28433-ZH8-801 In stock	Ratchet Guide	Was £13.06 £10.88 Special Price £9.08 £7.57
7	HP28441-ZH8-801 In stock	Friction Spring	Was £7.66 £6.38 Special Price £5.33 £4.44
8	HP28442-ZH8-003 Available to backorder	Recoil Spring	£28.37 £23.64
9	HP28443-ZH8-801 Available to backorder	Return Spring	£5.15 £4.29
10	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.95 £5.79
11	HP28462-Z1V-801 Available to backorder	Recoil Starter Rope	£21.34 £17.78
12	HP90003-ZH8-801 In stock	Setting Screw	Was £9.00 £7.50 Special Price £6.48 £5.40
13	HP95701-0600800 In stock	Flange Bolt 6X8	£1.37 £1.14
