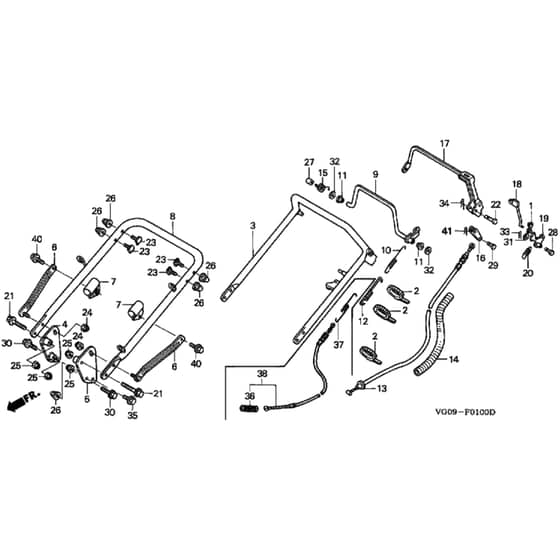

Honda HRH536K3 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.52 £7.10
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
3	HP53110-VG0-950ZB Available to backorder	Upper Handle	£131.52 £109.60
4	HP53115-VG0-000 Available to backorder	Handle Stay R H	£75.36 £62.80
5	HP53116-VG0-000 Available to backorder	Handle Stay L H	£75.36 £62.80
6	HP53118-VB5-800 Available to backorder	Handle Support Plate	£22.64 £18.87
7	HP53119-VB5-800 Available to backorder	Handle Support Hanger	£21.89 £18.24
8	HP53150-VG0-010ZB Available to backorder	Handle	£92.90 £77.42
9	HP54410-VA9-H50 Available to backorder	Clutch Lever Assy	£78.72 £65.60
10	HP54411-VA3-J00 Available to backorder	Clutch Spring	£8.32 £6.93
11	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
12	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.52 £5.43
13	HP54530-VA3-J01 In stock	Roto-Stop Cable	£36.60 £30.50
14	HP54558-VG0-010 Available to backorder	Cable Guard Tube	£20.78 £17.32
15	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
16	HP75128-VE0-L00 Available to backorder	Cable Arm	£15.50 £12.92
17	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
18	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
19	HP75166-VA3-J01 Available to backorder	Lock Lever	£23.56 £19.63
20	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
21	HP95701-0806000 Available to backorder	Flange Bolt 8 X 60	£2.20 £1.83
22	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
23	HP90109-VB5-800 Available to backorder	Handle Bolt	£7.78 £6.48
24	HP90115-659-003 In stock	Nut	£1.10 £0.92
25	HP90312-SB2-000 In stock	Lock Nut 8Mm	£6.62 £5.52
26	HP90443-107-000 Available to backorder	Nut	£7.96 £6.63
27	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
28	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
29	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
30	HP95701-0803500 Available to backorder	Flange Bolt 8 X 35	£2.57 £2.14
31	HP90407-952-300 Available to backorder	Special Washer 6Mm	£4.10 £3.42
32	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
34	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
35	HP95701-0802000 Available to backorder	Flange Bolt 8 X 20	£1.54 £1.28
40	HP95701-0801600 Available to backorder	Flange Bolt 8 X 16	£1.54 £1.28
41	HP94251-06000 In stock	Lock Pin 6Mm	£1.14 £0.95
