Honda HRH536K2 - HXE - MZBU 8200001-9999999 Camshaft Diagram

Name: Honda HRH536K2 - HXE - MZBU 8200001-9999999 Camshaft Diagram
SKU: hrh536k2_hxe_mzbu_8200001_9999999_camshaft-group
Price: 1.86 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRH536K2 - HXE - MZBU 8200001-9999999 Camshaft Diagram

Description

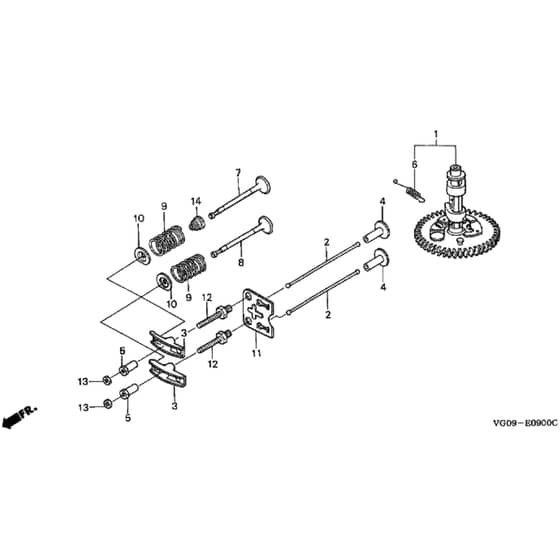

Honda HRH536K2 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP14100-ZE7-N40 Available to backorder	Camshaft Assy	£222.36 £185.30
2	HP14410-ZE1-010 In stock	Push Rod	£10.02 £8.35
3	HP14431-ZE1-000 In stock	Valve Rocker Arm	£10.13 £8.44
4	HP14441-ZE1-010 Available to backorder	Valve Lifter	£20.57 £17.14
5	HP14451-ZE1-013 Available to backorder	Rocker Pivot Nut	£6.12 £5.10
6	HP14568-ZE1-000 Available to backorder	Weight Return Spring	£2.23 £1.86
7	HP14711-ZF1-000 Available to backorder	Inlet Valve	£22.64 £18.87
8	HP14721-ZE7-000 Available to backorder	Exhaust Valve	£35.72 £29.77
9	HP14751-ZE1-000 Available to backorder	Valve Spring	£4.99 £4.16
10	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.11 £7.59
11	HP14791-ZE1-010 Out of stock	Push Rod Guide Plate	£4.60 £3.83
12	HP90012-ZE0-010 Available to backorder	Pivot Bolt	£9.29 £7.74
13	HP90206-ZE1-000 Available to backorder	Adjusting Pivot Nut	£2.24 £1.87
14	HP12209-ZE6-003 Available to backorder	Valve Stem Seal	£6.26 £5.22
