Honda HRH536K1 - HXE - MZBU 8100001-8199999 Transmission Diagram

Description

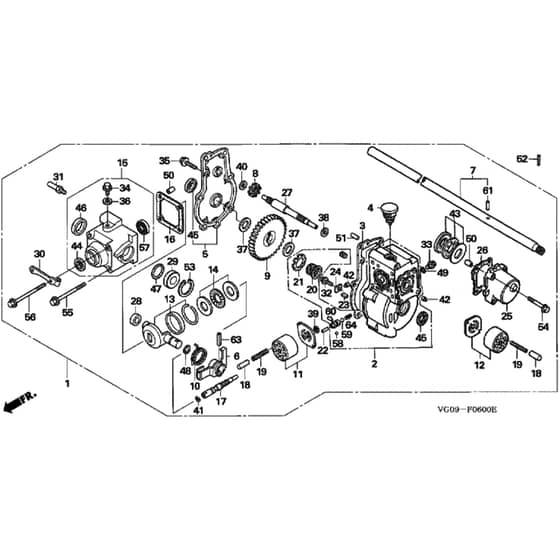

Honda HRH536K1 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VG0-305 Available to backorder	Transmission Assy	£361.96 £301.63
2	HP21110-VD6-904 Available to backorder	Transmission Case Assy	£213.72 £178.10
3	HP21115-VD6-900 Available to backorder	Transmission Case Gasket	£7.96 £6.63
4	HP21230-VD6-903 Available to backorder	Oil Cap Assy	£34.12 £28.43
5	HP21520-VD6-901 Available to backorder	Transmission Cover Assy	£166.32 £138.60
6	HP22533-VK6-000 Available to backorder	Control Arm	£16.07 £13.39
7	HP23250-VG0-950 Available to backorder	Final Shaft	£157.56 £131.30
8	HP23456-VD6-902 Available to backorder	Gear	£26.21 £21.84
9	HP23483-VD6-902 Available to backorder	Gear	£101.40 £84.50
10	HP24134-VD6-900 Available to backorder	Control Arm Spring	£6.88 £5.73
11	HP25010-VD6-900 Available to backorder	Pump Set	£94.08 £78.40
12	HP25011-VD6-900 Available to backorder	Plate Set	£93.96 £78.30
13	HP25012-VD6-902 Available to backorder	Bowl Set	£221.04 £184.20
14	HP25014-VD6-900 Available to backorder	Thrust Bearing	£39.67 £33.06
15	HP25016-VD6-900 Available to backorder	Pump Case	£209.64 £174.70
16	HP25312-VD6-900 In stock	Gasket	£6.00 £5.00
17	HP25321-VD6-900 Available to backorder	Pump Shaft	£59.52 £49.60
18	HP25342-VD6-900 Available to backorder	Piston Pump	£14.84 £12.37
19	HP25343-VD6-900 Available to backorder	Piston Spring	£1.88 £1.57
20	HP25421-VD6-852 Available to backorder	Suction Filter	£17.82 £14.85
21	HP25425-VD6-901 Available to backorder	Filter Plate	£6.67 £5.56
22	HP25442-VD6-900 Available to backorder	Needle Valve	£2.46 £2.05
22	HP25445-VD6-900 Available to backorder	Needle Valve	£2.46 £2.05
22	HP25443-VD6-900 Available to backorder	Needle Valve	£2.46 £2.05
22	HP25444-VD6-900 Available to backorder	Needle Valve	£2.46 £2.05
23	HP25519-VD6-900 Available to backorder	Magnet	£4.97 £4.14
24	HP25529-VD6-900 Available to backorder	Magnet Plate	£3.54 £2.95
25	HP25711-VD6-901 Available to backorder	Motor Case	£59.41 £49.51
26	HP25712-VD6-902 Available to backorder	Motor Case Gasket	£4.69 £3.91
27	HP25721-VD6-901 Available to backorder	Motor Shaft	£86.16 £71.80
28	HP25812-VD6-900 Available to backorder	Bush	£9.67 £8.06
29	HP25813-VD6-900 Available to backorder	Bush	£14.36 £11.97

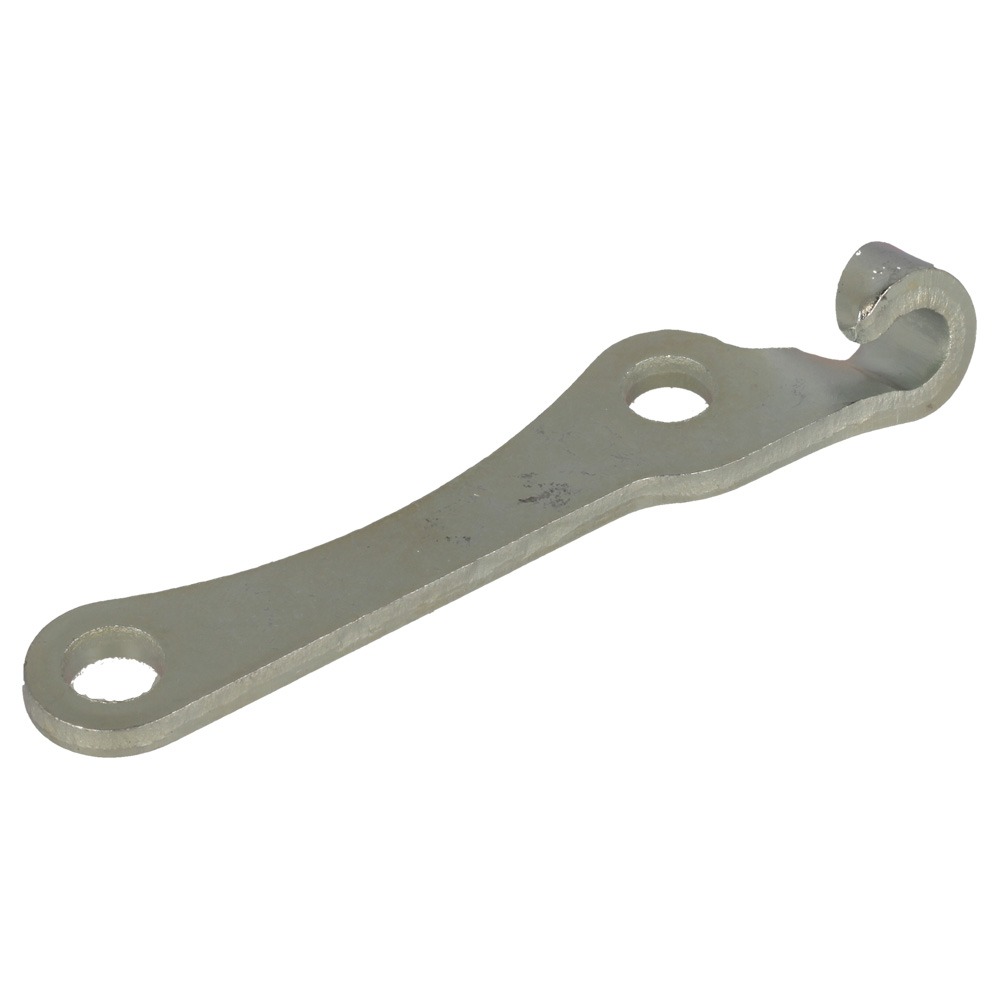

30	HP54346-VD6-900 In stock	Cable Holder	Was £12.49 £10.41 Special Price £8.99 £7.49
31	HP90012-VA4-800 Available to backorder	Bolt Guide	£6.95 £5.79
32	HP90017-ZV0-000 Available to backorder	Flange Bolt	£2.87 £2.39
33	HP90102-VD6-901 Available to backorder	Bolt	£5.34 £4.45
35	HP90113-VD6-900 Available to backorder	Flange Bolt	£1.82 £1.52
36	HP90421-KM1-003 Available to backorder	Sealing Washer	£3.92 £3.27
37	HP90533-VD6-901 Available to backorder	Washer 15 X 24 X 3.2	£4.98 £4.15
38	HP90587-VD6-900 Available to backorder	Thrust Washer	£2.66 £2.22
39	HP90588-VD6-900 Available to backorder	Thrust Washer	£2.66 £2.22
40	HP90589-VD6-901 Available to backorder	Thrust Washer	£2.66 £2.22
41	HP90662-VD6-900 Available to backorder	Clip	£4.79 £3.99
42	HP90755-VD6-900 Available to backorder	Pin	£3.26 £2.72
43	HP91061-VD6-901 Available to backorder	Thrust Bearing	£61.80 £51.50
44	HP91201-VA4-801 In stock	Oil Seal 10 X 20 X 5	£3.29 £2.74
45	HP91205-VA4-801 Available to backorder	Oil Seal	£5.47 £4.56
46	HP91255-723-671 Available to backorder	Seal Plug 22 X 7	£13.18 £10.98
47	HP91304-GB1-900 Available to backorder	O Ring	£6.94 £5.78
48	HP91361-VD6-901 Available to backorder	O Ring 11.8 X 1.9	£3.94 £3.28
49	HP91363-VD6-900 Available to backorder	O-Ring	£1.98 £1.65
50	HP94301-08100 Available to backorder	Dowel Pin 8 X 10	£2.40 £2.00
51	HP94303-04065 Available to backorder	Pin	£2.38 £1.98
52	HP94305-50222 Available to backorder	Spring Pin 5 X 22	£2.48 £2.07
53	HP94520-30000 Available to backorder	Internal Circlip 30Mm	£2.23 £1.86
54	HP96001-06032-00 Available to backorder	Bolt	£2.03 £1.69
55	HP96001-06060-00 Available to backorder	Bolt	£2.21 £1.84
56	HP96001-06065-00 Available to backorder	Bolt	£2.26 £1.88
57	HP96100-6000000 Available to backorder	Bearing	£12.71 £10.59
58	HP96211-05000 Available to backorder	Ball	£0.37 £0.31
59	HP96211-08000 Available to backorder	Ball	£0.40 £0.33
60	HP96220-40198 Available to backorder	Roller	£0.66 £0.55
61	HP96220-60224 Out of stock	Pin	£1.06 £0.88
63	HP94305-50202 Available to backorder	Spring Pin 5 X 20	£2.34 £1.95
64	HP25431-VD6-305 Available to backorder	Valve Spring	£1.38 £1.15
