Honda HRH536K1 - HXE - MZBU 8100001-8199999 Crankshaft/Piston Diagram

Name: Honda HRH536K1 - HXE - MZBU 8100001-8199999 Crankshaft/Piston Diagram
SKU: hrh536k1_hxe_mzbu_8100001_8199999_crankshaft_piston-group
Price: 1.56 GBP
Availability: InStock

Part No. hrh536k1_hxe_mzbu_8100001_8199999_crankshaft_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRH536K1 - HXE - MZBU 8100001-8199999 Crankshaft/Piston Diagram

Description

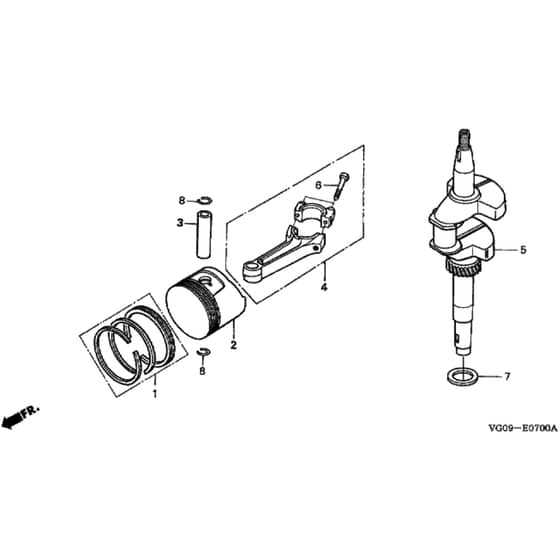

Honda HRH536K1 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP13013-ZL0-004 Available to backorder	Piston Ring Set	£52.60 £43.83
1	HP13010-ZL0-004 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13012-ZL0-004 Available to backorder	Piston Ring Set	£52.60 £43.83
1	HP13010-ZL0-003 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13011-ZL0-003 Available to backorder	Piston Ring Set - 0.25	£45.73 £38.11
1	HP13011-ZL0-004 Available to backorder	Piston Ring Set	£45.71 £38.09
1	HP13013-ZL0-003 Available to backorder	Piston Ring Set	£52.60 £43.83
1	HP13012-ZL0-003 Available to backorder	Piston Ring Set	£52.60 £43.83
2	HP13103-ZE7-020 Available to backorder	Piston 0.50	£62.04 £51.70
2	HP13104-ZE7-020 Available to backorder	Piston	£62.04 £51.70
2	HP13102-ZE7-020 Available to backorder	Piston 0.25	£62.04 £51.70
3	HP13111-ZE1-000 Available to backorder	Gudgeon Pin	£14.05 £11.71
4	HP13200-Z1V-600 Available to backorder	Connecting Rod Assy	£107.52 £89.60
5	HP13310-ZE7-771 Available to backorder	Crankshaft Assy	£205.68 £171.40
6	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.52 £2.93
7	HP90401-ZE7-W00 Available to backorder	Thrust Washer	£6.72 £5.60
8	HP90551-ZE1-000 Available to backorder	Gudgeon Pin Clip 18Mm	£1.87 £1.56
