Honda HRG536C8-VYEA - Transmission Diagram

Description

Honda HRG536C8-VYEA Rotary Mower Parts Diagram

	Part No.	Details

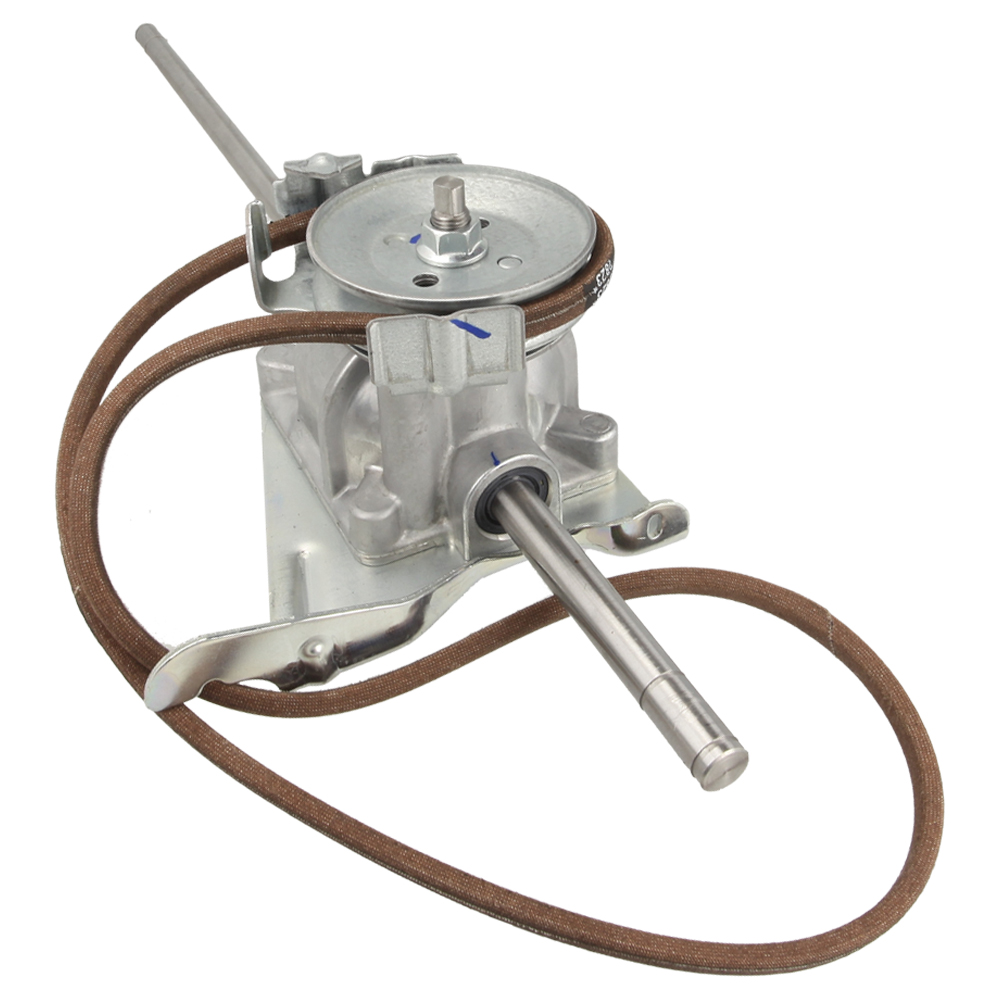

1	HP20001-VL0-S00 Available to backorder	1 Transmission Assy	£265.08 £220.90
2	HP21581-VL0-M00 Available to backorder	2 O Ring	£4.16 £3.47
3	HP21611-VL0-P00 Available to backorder	3 Reduction Cover	£6.30 £5.25
6	HP23211-VL0-P00 Available to backorder	6 Face Driven	£14.76 £12.30
7	HP24468-VL0-P00 Available to backorder	7 Tension Spring	£2.22 £1.85
8	HP53104-VL0-P01 Available to backorder	8 Bracket	£12.44 £10.37
9	HP90013-883-000 Available to backorder	9 Flange Bolt 6 X 12	£5.42 £4.52
11	HP90504-VH7-A00 Available to backorder	11 Washer	£1.10 £0.92

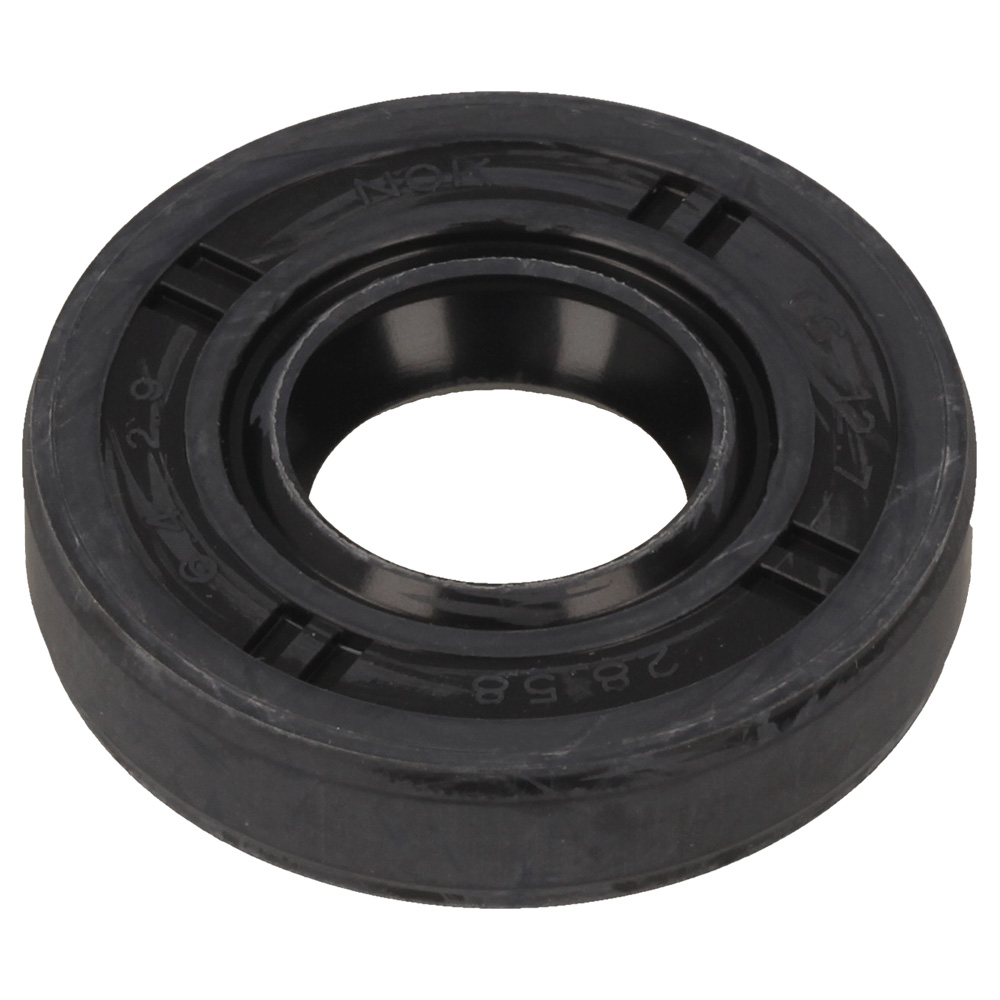

12	HP91251-VL0-B00 Available to backorder	12 Oil Seal 12.7 X 28.6 X 6.4	£4.92 £4.10

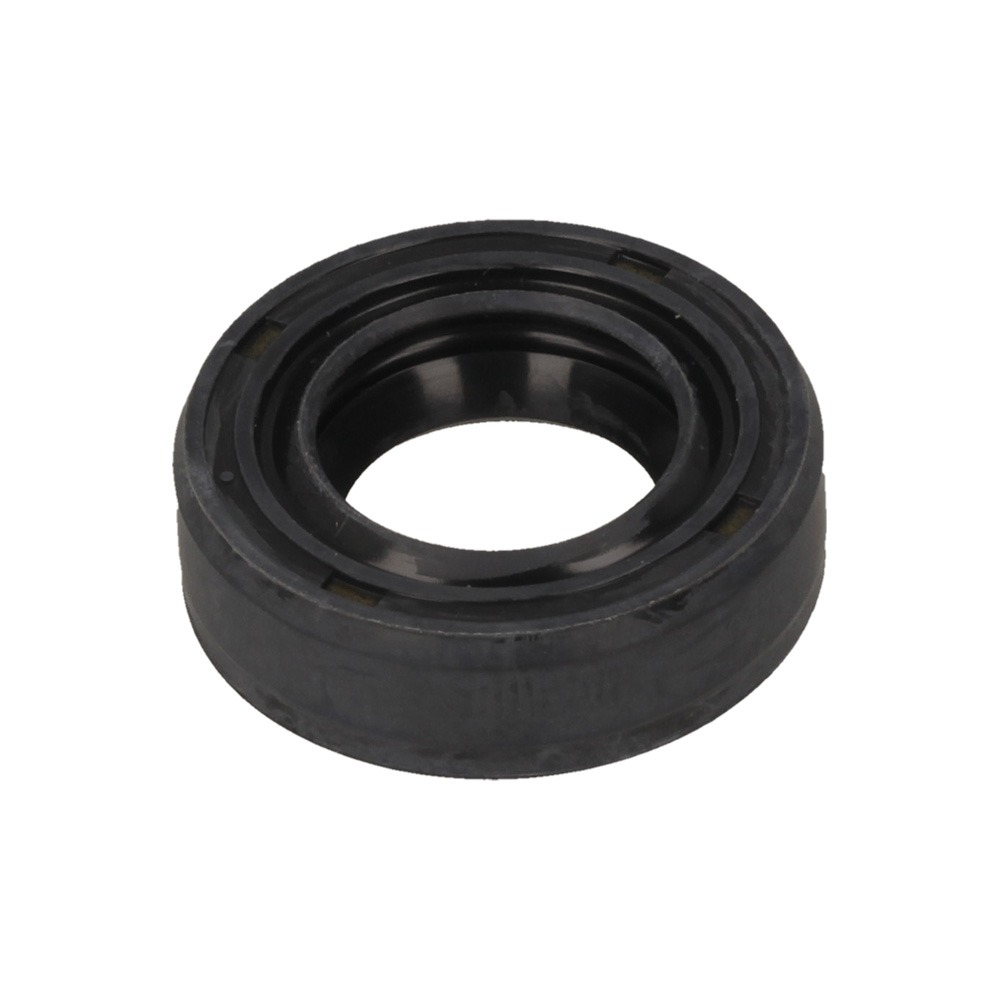

13	HP91251-VL0-M00 Available to backorder	13 Oil Seal 12.7 X 22.2 X 6.4	£4.84 £4.03
14	HP94050-10080 Available to backorder	14 Flange Nut 10Mm	£3.12 £2.60
15	HP22451-VL0-S00 Available to backorder	15 Belt Guide	£8.36 £6.97
