Honda HRG536C8-VYEA - Flywheel Diagram

Name: Honda HRG536C8-VYEA - Flywheel Diagram
SKU: hrg536c8_vyea_flywheel-group
Price: 1.61 GBP
Availability: InStock

Part No. hrg536c8_vyea_flywheel-group

Description

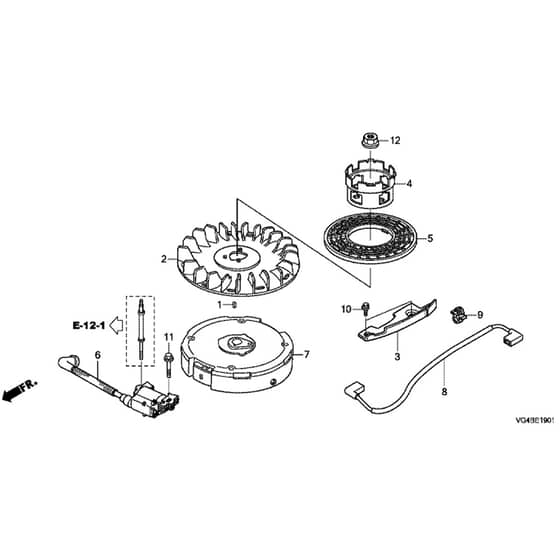

Honda HRG536C8-VYEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-Z8B-900 Available to backorder	1 Key	£1.93 £1.61
2	HP19511-Z0J-900 Available to backorder	2 Cooling Fan	£8.64 £7.20
3	HP19612-Z0L-000 Available to backorder	3 Plate	£3.70 £3.08
4	HP28451-Z0J-900 Available to backorder	4 Pulley	£31.03 £25.86
5	HP28452-Z0J-900 Available to backorder	5 Screen Grid	£29.15 £24.29

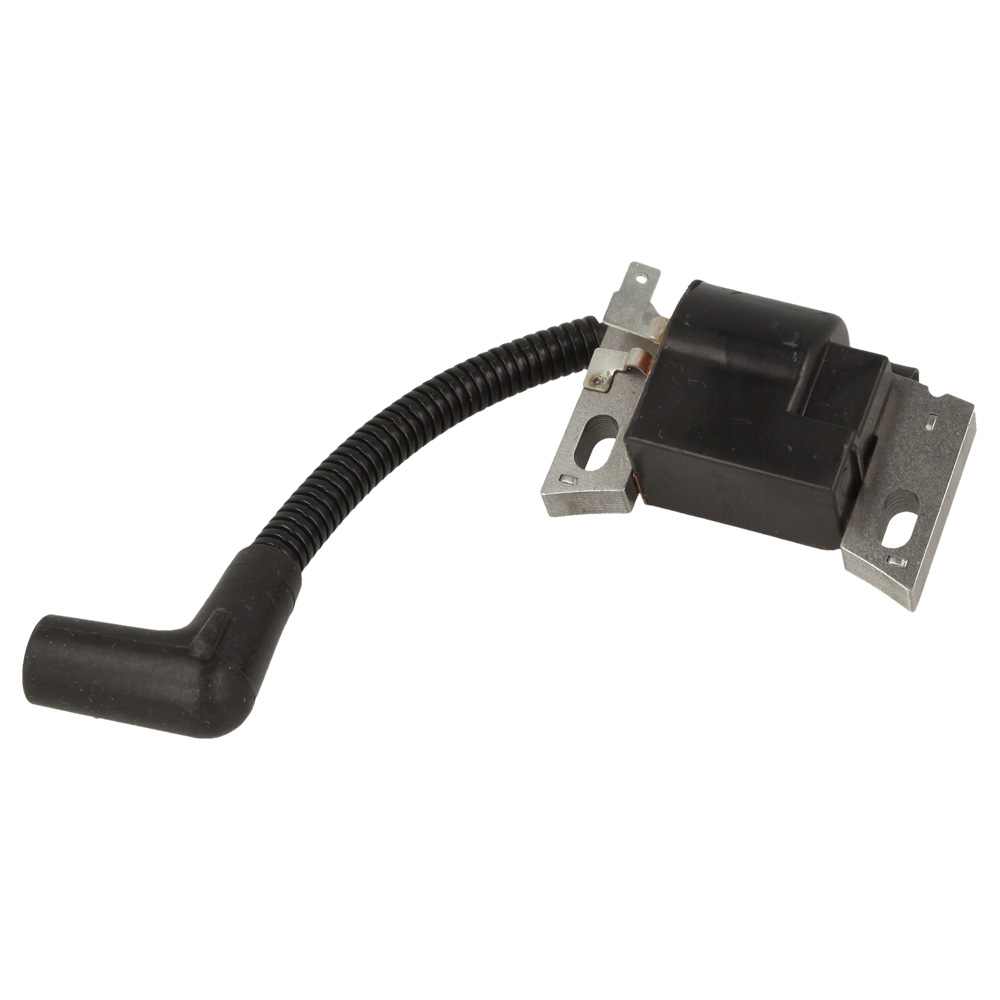

6	HP30500-Z8B-912 Available to backorder	6 Ignition Coil Assy	£81.48 £67.90
7	HP31110-Z0J-014 Available to backorder	7 Flywheel Assy	£92.88 £77.40
8	HP32195-Z0L-M90 Available to backorder	8 Stop Switch Cord	£10.08 £8.40
9	HP51125-Z0L-003 Available to backorder	9 Wire Holder	£2.74 £2.28
10	HP90013-883-000 Available to backorder	10 Flange Bolt 6 X 12	£4.34 £3.62
11	HP90018-ZE1-000 Available to backorder	11 Flange Bolt	£2.96 £2.47
12	HP90201-Z0T-800 Available to backorder	12 Speical Nut 14Mm	£7.10 £5.92
