Honda HRG536C8-VYEA - Crankshaft, Piston Diagram

Honda HRG536C8-VYEA - Crankshaft, Piston Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

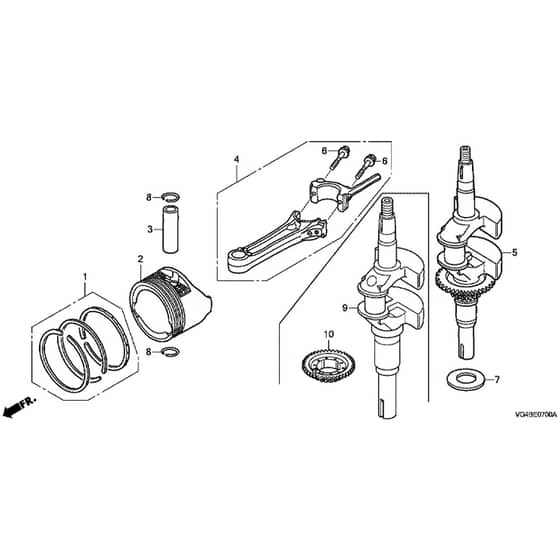

Honda HRG536C8-VYEA - Crankshaft, Piston Diagram

Honda HRG536C8-VYEA - Crankshaft, Piston Diagram

Description

Honda HRG536C8-VYEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP13010-Z0L-014 Available to backorder	1 Piston Ring Set - Std		£32.23 £26.86
	2		HP13101-Z8B-820 Available to backorder	2 Piston		£39.54 £32.95
	3		HP13111-Z8B-000 Available to backorder	3 Gudgeon Pin		£12.88 £10.73
	4		HP13200-Z0J-000 Available to backorder	4 Rod		£51.32 £42.77
	6		HP90006-Z8B-000 Available to backorder	6 Connecting Rod Bolt		£4.09 £3.41
	7		HP90402-Z0Y-000 Available to backorder	7 Thrust Washer		£3.23 £2.69
	8		HP90551-ZE0-000 Available to backorder	8 Gudgeon Pin Clip 13Mm		£1.81 £1.51
	9		HP13311-Z8B-960 Available to backorder	9 Crankshaft		£176.88 £147.40
	10		HP13621-Z8B-900 Available to backorder	10 Timing Belt Pulley		£8.30 £6.92

Description

Honda HRG536C8-VYEA Rotary Mower Parts Diagram
