Honda HRG536C8-VYEA - Control Diagram

Description

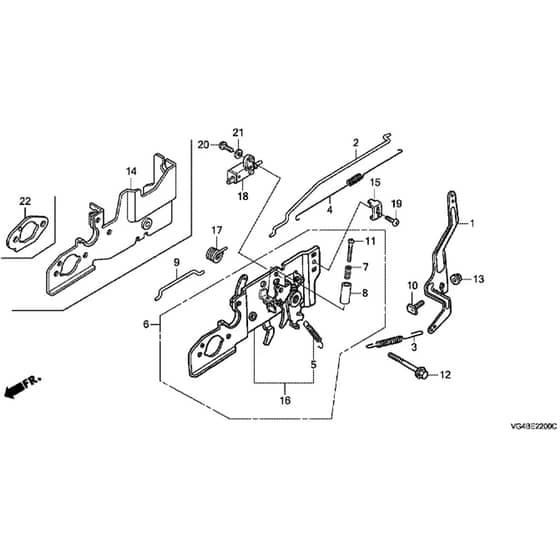

Honda HRG536C8-VYEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP16551-ZM0-010 Available to backorder	1 Governor Arm	£8.99 £7.49
2	HP16555-Z0L-801 Available to backorder	2 Governor Rod	£6.66 £5.55
3	HP16561-Z0L-000 Available to backorder	3 Governor Spring	£3.47 £2.89
4	HP16562-ZM0-000 In stock	4 Throttle Return Spring	£3.68 £3.07
5	HP16576-ZE7-300 Available to backorder	5 Lever Spring	£4.33 £3.61
10	HP90015-ZE5-010 Available to backorder	10 Governor Arm Bolt	£3.31 £2.76
12	HP90014-888-000 Available to backorder	12 Flange Bolt 6 X 50	£5.94 £4.95
13	HP94050-06000 In stock	13 Flange Nut 6Mm	£3.22 £2.68
15	HP16576-891-000 Available to backorder	15 Cable Holder	£3.85 £3.21
16	HP16580-Z0Y-M60 Available to backorder	16 Control Base	£56.26 £46.88
17	HP16593-Z0L-000 Available to backorder	17 Control Spring	£38.83 £32.36
18	HP35120-Z1L-J21 Available to backorder	18 Engine Stop Switch	£18.23 £15.19
19	HP93500-050160A Available to backorder	19 Screw Pan 5X16	£1.50 £1.25
20	HP93892-0401200 Available to backorder	20 Screw	£1.50 £1.25
21	HP94103-040-00 Available to backorder	21 Washer 4Mm	£0.94 £0.78
