Honda HRG536C8-VLEA - Handle Pipe Diagram

Description

Honda HRG536C8-VLEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28475-VL0-S00 Available to backorder	1 Rope Guide	£4.86 £4.05
2	HP32901-VK7-000 Available to backorder	2 Cable Tie	£6.30 £5.25
3	HP51125-VL0-W00 Available to backorder	3 Wire Holder	£25.52 £21.27
4	HP53111-VL0-U51ZA Available to backorder	4 Upper Handle	£109.20 £91.00
5	HP53125-VL0-B00ZA In stock	5 Handle Grip	£25.52 £21.27
6	HP53130-VL0-N50 Available to backorder	6 R Handle Stay Comp	£63.24 £52.70
7	HP53135-VL0-N50 Available to backorder	7 L Handle Stay Comp	£63.24 £52.70
8	HP53158-VK8-J50 Available to backorder	8 Pin	£14.82 £12.35
9	HP53367-VL0-B00 In stock	9 Handle Adjusting Spring	£1.46 £1.22
10	HP54315-VH7-K00 Available to backorder	10 Lever Stopper	£40.86 £34.05
11	HP54315-VH7-L00 Available to backorder	11 Select Lever	£4.20 £3.50
12	HP54316-VH7-K00 Available to backorder	12 Lock Pin	£2.10 £1.75
13	HP54411-VH7-L00 Available to backorder	13 Select Lever Spring	£0.70 £0.58
14	HP54421-VL0-L00 Available to backorder	14 Pad Grip R H	£2.65 £2.21
15	HP54426-VL0-L00 Available to backorder	15 Pad Grip L H	£2.65 £2.21
16	HP54434-VL0-B00 Available to backorder	16 Upper Grip Bracket	£5.26 £4.38
17	HP54437-VL0-B00 Available to backorder	17 Lower Grip Bracket	£5.26 £4.38
18	HP54442-VL0-P00 Available to backorder	18 Upper Bracket Cover	£2.98 £2.48
19	HP54443-VH7-L00 Available to backorder	19 Upper Clutch Grip	£11.52 £9.60
20	HP54446-VH7-L00 In stock	20 Lower Clutch Grip	£10.32 £8.60
21	HP54447-VL0-P00 Available to backorder	21 Lower Bracket Cover	£3.85 £3.21

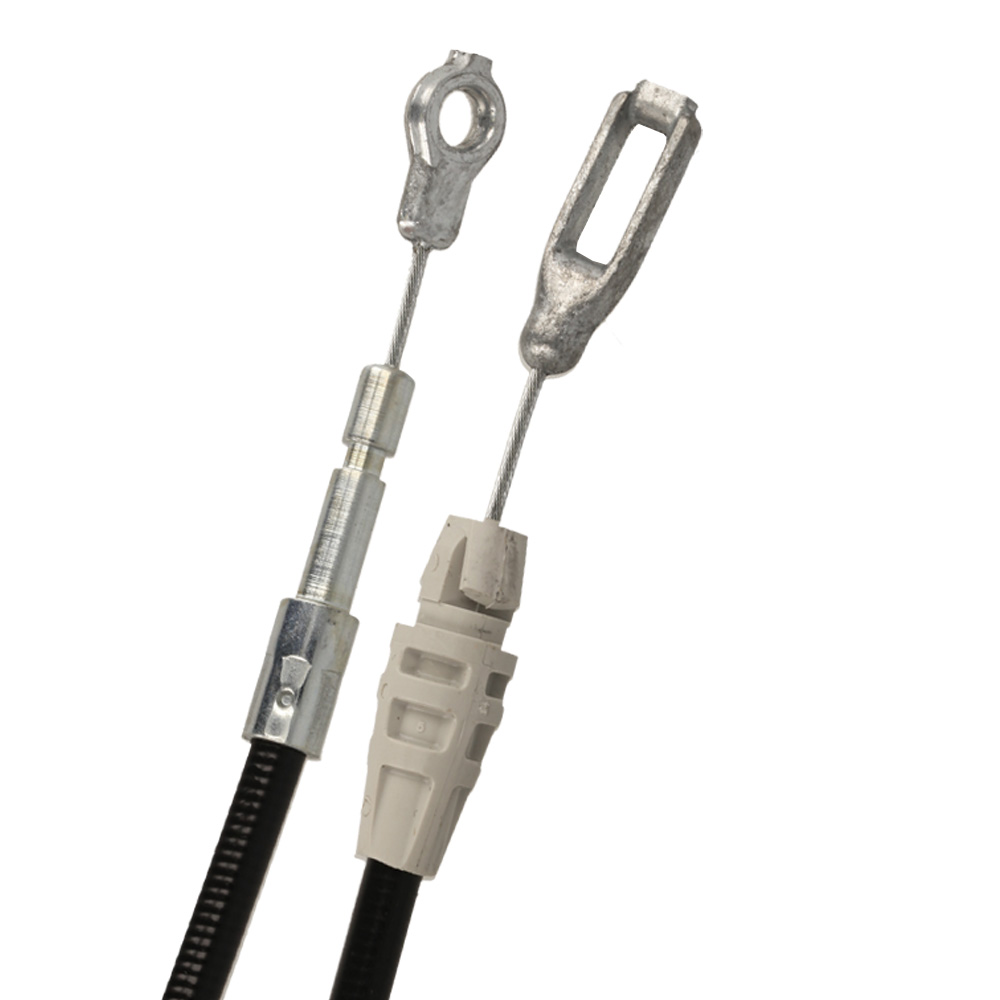

22	HP54510-VL0-P02 Available to backorder	22 Clutch Cable	£39.12 £32.60
23	HP54530-VL0-S01 Available to backorder	23 Cable	£25.20 £21.00
25	HP75191-VH7-K00ZA Available to backorder	25 Brake Lever	£19.57 £16.31

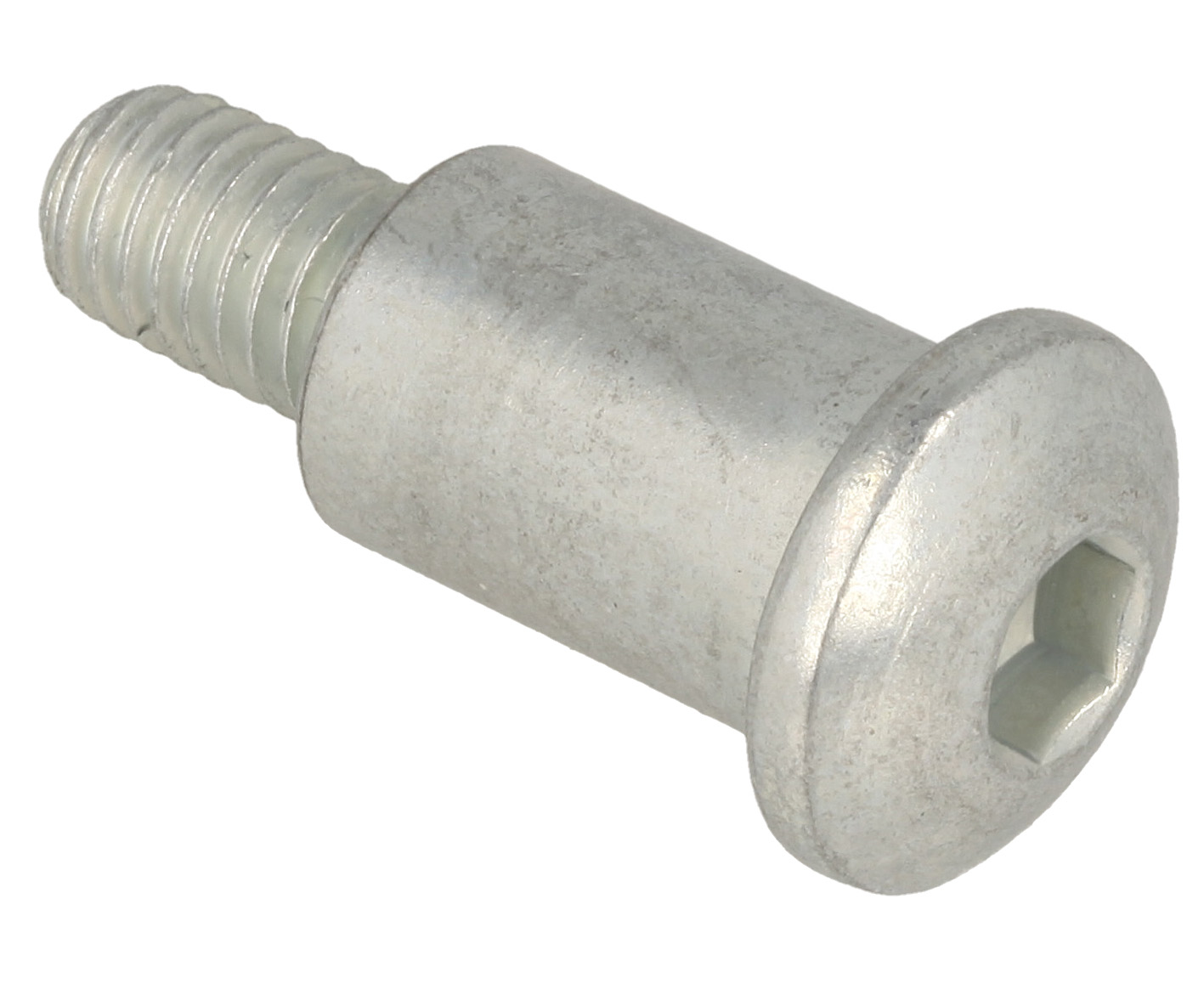

26	HP90102-VL0-P00 Available to backorder	26 Special Bolt 8 X 32	£2.60 £2.17
27	HP90303-V10-000 Available to backorder	27 Lock Nut	£3.34 £2.78
28	HP90303-VG3-000 Available to backorder	28 Lock Nut 6Mm	£0.74 £0.62

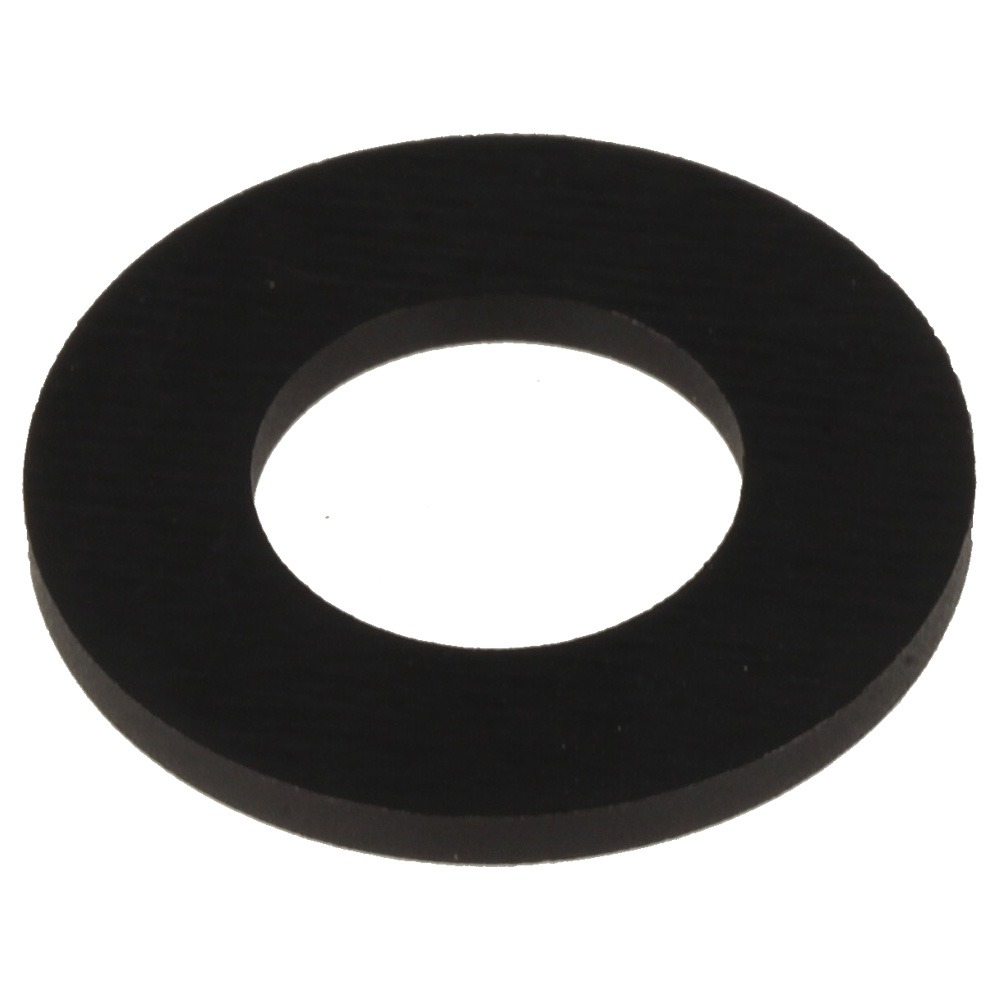

29	HP90503-VL0-B00 Out of stock	29 Washer	£1.96 £1.63
30	HP90751-VL0-B00 In stock	30 Pin	£1.22 £1.02
31	HP91151-VL0-B00 Available to backorder	31 Roller	£3.16 £2.63
32	HP91551-VL0-B00 In stock	32 Handle Height Collar	£4.56 £3.80
33	HP93911-14280 Available to backorder	33 Self Tapping Screw	£1.80 £1.50
34	HP94050-06000 In stock	34 Flange Nut 6Mm	£3.22 £2.68
35	HP94050-08080 Available to backorder	35 Flange Nut 8Mm	£3.22 £2.68
36	HP95701-06045-07 Available to backorder	36 Bolt	£2.00 £1.67
