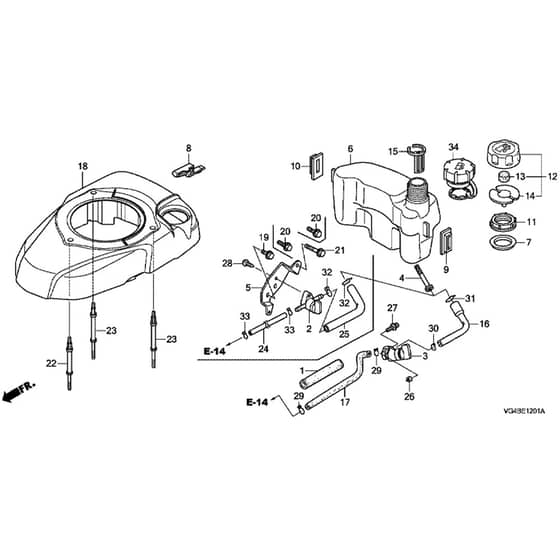

Honda HRG536C8-VLEA - Fan Cover Diagram

Description

Honda HRG536C8-VLEA Rotary Mower Parts Diagram

	Part No.	Details
2	HP16950-Z0Y-003 Available to backorder	2 Fuel Tap Assy	£35.81 £29.84
4	HP16952-Z8B-000 Available to backorder	4 Fuel Filter	£8.16 £6.80
5	HP16961-Z0L-900 Available to backorder	5 Stay Fuel Cock	£18.74 £15.62
6	HP17511-Z8B-801 Available to backorder	6 Fuel Tank	£60.82 £50.68
7	HP17514-Z0L-000 Available to backorder	7 Fuel Filler Neck Seal	£11.32 £9.43
8	HP17516-Z8B-900ZD Available to backorder	8 Tank Mounting Clip Nh1	£5.98 £4.98
9	HP17532-Z8B-800 Available to backorder	9 Tank Mounting Rubber A	£3.55 £2.96
10	HP17533-Z8B-800 Available to backorder	10 Tank Mounting Rubber B	£5.18 £4.32
11	HP17534-Z0L-000 Available to backorder	11 Tank Mounting Nut	£2.62 £2.18
15	HP17636-Z0L-010 Available to backorder	15 Fuel Level Gauge	£10.58 £8.82
18	HP19611-Z8D-910ZA Available to backorder	18 Fan Cover	£74.94 £62.45
19	HP90013-883-000 Available to backorder	19 Flange Bolt 6 X 12	£5.42 £4.52
21	HP90015-883-000 Available to backorder	21 Flange Bolt 6 X 28	£3.67 £3.06
22	HP90043-Z0L-M70 Available to backorder	22 Stud Bolt	£6.70 £5.58
23	HP90043-Z8D-010 Available to backorder	23 Stud	£3.48 £2.90
24	HP16840-Z8B-900 Available to backorder	24 Fuel Pipe	£11.66 £9.72
25	HP17700-Z8B-900 Available to backorder	25 Fuel Pipe	£4.01 £3.34
28	HP93913-252-20 Available to backorder	28 Tapping Screw 5X12 Po	£1.45 £1.21
32	HP95002-02130 Available to backorder	32 Tube Clip	£1.25 £1.04
33	HP95002-50000 Available to backorder	33 Tube Clip	£0.96 £0.80
34	HP17620-Z8B-800 In stock	34 Fuel Cap Assy	£9.22 £7.68
