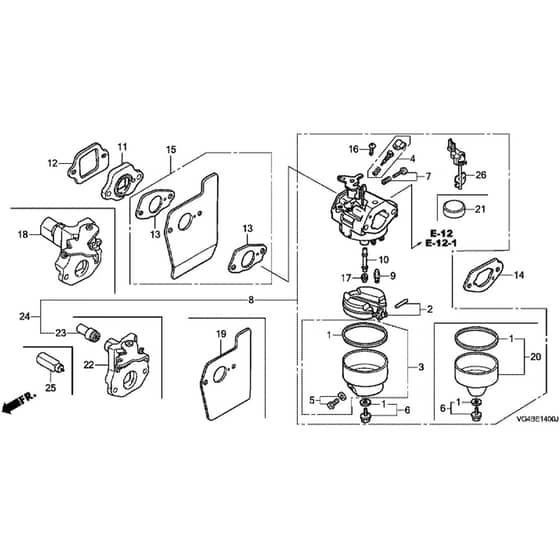

Honda HRG536C8-SKEA - Carburettor Diagram

Honda HRG536C8-SKEA - Carburettor Diagram

Part No. hrg536c8_skea_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C8-SKEA - Carburettor Diagram

Honda HRG536C8-SKEA - Carburettor Diagram

Description

Honda HRG536C8-SKEA Rotary Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP16010-883-015 In stock	1 Gasket Set		£13.36 £11.13
	2		HP16013-ZL1-003 Available to backorder	2 Float Set		£36.44 £30.37
	6		HP16028-ZK7-S91 In stock	6 Screw Set		£14.34 £11.95
	7		HP16029-ZG0-901 Available to backorder	7 Throttle Stop Screw Set		£14.30 £11.92
	8		HP16100-Z8B-871 In stock	8 Carburettor Assy		£107.39 £89.49
	9		HP16155-ZM0-013 In stock	9 Float Valve		£38.47 £32.06
	10		HP16166-Z2C-003 Available to backorder	10 Main Nozzle		£42.08 £35.07
	12		HP16212-ZL8-000 In stock	12 Insulator Gasket		£3.07 £2.56
	16		HP93500-050-060H Available to backorder	16 Pan Screw		£2.32 £1.93
	17		HP99101-1240650 Available to backorder	17 Jet		£12.34 £10.28
	17		HP99101-1240600 Available to backorder	17 Main Jet		£12.34 £10.28
	17		HP99101-1240620 Available to backorder	17 Main Jet		£12.34 £10.28
	19		HP19651-Z0L-000 In stock	19 Air Guide		£4.18 £3.48
	20		HP16015-Z0L-881 Available to backorder	20 Float Bowl		£57.95 £48.29
	21		HP16148-Z1L-851 Available to backorder	21 Choke Dust Cap		£6.29 £5.24
	22		HP16600-Z8D-840 In stock	22 Choke Control Assy		£78.47 £65.39
	25		HP16620-Z8D-842 In stock	25 Thermowax Assy		£41.82 £34.85

Description

Honda HRG536C8-SKEA Rotary Mower Parts Diagram
