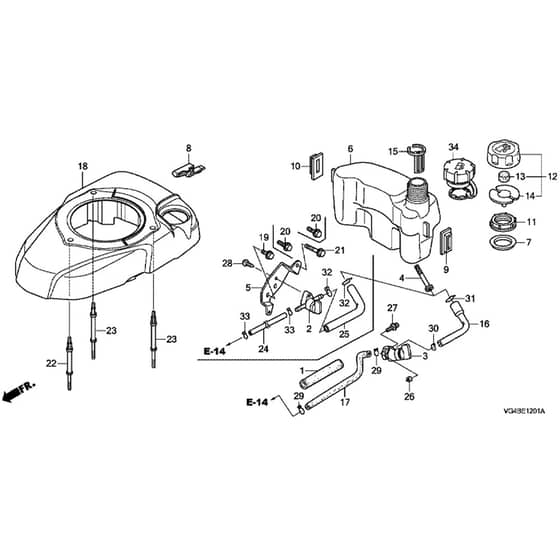

Honda HRG536C8-PKEH - Fan Cover Diagram

Description

Honda HRG536C8-PKEH Rotary Mower Parts Diagram

	Part No.	Details
2	HP16950-Z0Y-003 Available to backorder	2 Fuel Tap Assy	£35.81 £29.84
4	HP16952-Z9R-000 In stock	4 Fuel Strainer	£9.36 £7.80
5	HP16961-Z0L-900 Available to backorder	5 Stay Fuel Cock	£18.74 £15.62
6	HP17511-Z8B-801 Available to backorder	6 Fuel Tank	£60.82 £50.68
7	HP17514-Z0L-000 Available to backorder	7 Fuel Filler Neck Seal	£11.32 £9.43
8	HP17516-Z8B-900ZD Available to backorder	8 Tank Mounting Clip Nh1	£5.98 £4.98
9	HP17532-Z8B-800 Available to backorder	9 Tank Mounting Rubber A	£3.55 £2.96
10	HP17533-Z8B-800 Available to backorder	10 Tank Mounting Rubber B	£5.18 £4.32
11	HP17534-Z0L-000 Available to backorder	11 Tank Mounting Nut	£2.62 £2.18
12	HP17620-ZL8-023 In stock	12 Fuel Cap Assy	£11.40 £9.50
13	HP17622-888-010 In stock	13 Breather Sponge	£1.50 £1.25
14	HP17624-ZE7-000 Available to backorder	14 Fuel Cap Gasket	£3.40 £2.83
15	HP17636-Z0L-010 Available to backorder	15 Fuel Level Gauge	£10.58 £8.82
18	HP19611-Z8B-900ZC Available to backorder	18 Fan Cover	£51.53 £42.94
20	HP90014-952-000 Available to backorder	20 Flange Bolt 6 X 14	£3.73 £3.11

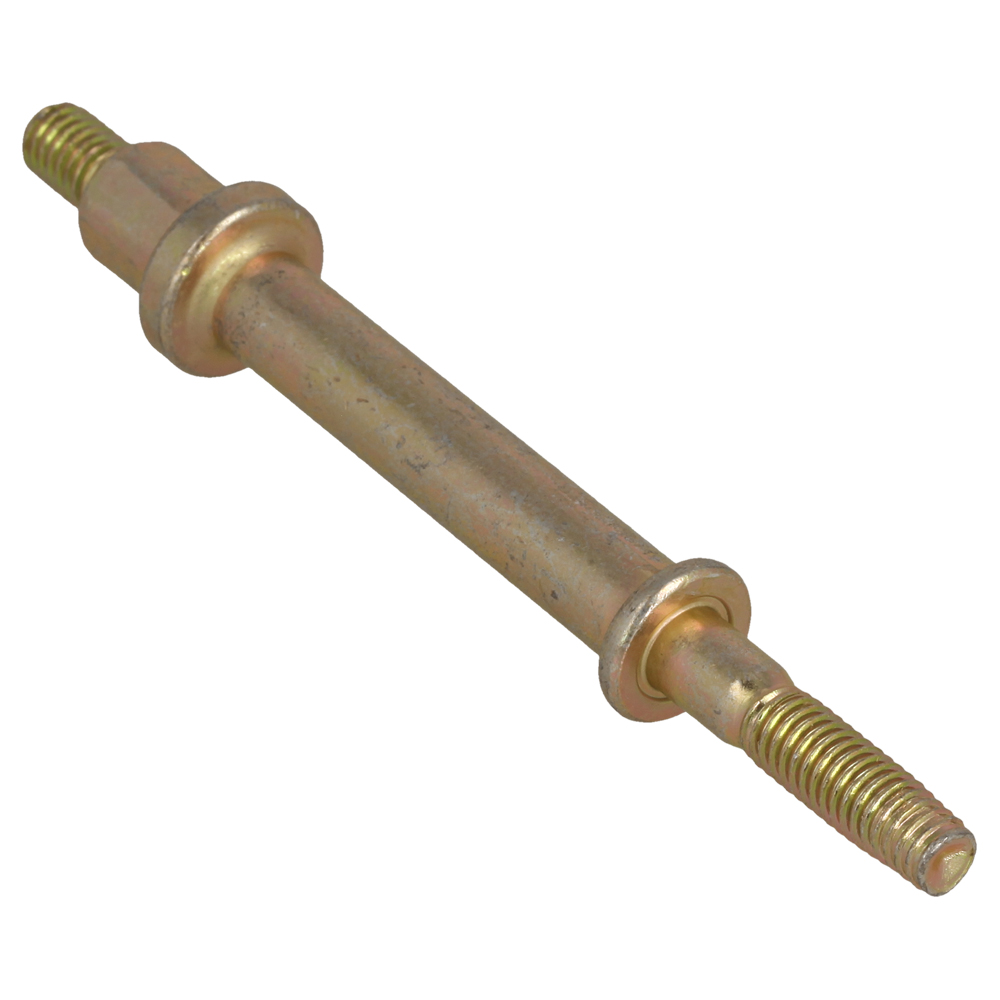

22	HP90043-Z8B-910 Available to backorder	22 Stud	£3.48 £2.90
23	HP90043-Z8D-010 Available to backorder	23 Stud	£3.48 £2.90
28	HP93913-252-20 Available to backorder	28 Tapping Screw 5X12 Po	£1.45 £1.21
32	HP95002-02120 Available to backorder	32 Tube Clip	£1.48 £1.23
33	HP95002-02080 Available to backorder	33 Tube Clip	£1.08 £0.90
