Honda HRG536C7-VYEA - Driven Pulley Diagram

Name: Honda HRG536C7-VYEA - Driven Pulley Diagram
SKU: hrg536c7_vyea_driven_pulley-group
Price: 0.49 GBP
Availability: InStock

Part No. hrg536c7_vyea_driven_pulley-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C7-VYEA - Driven Pulley Diagram

Description

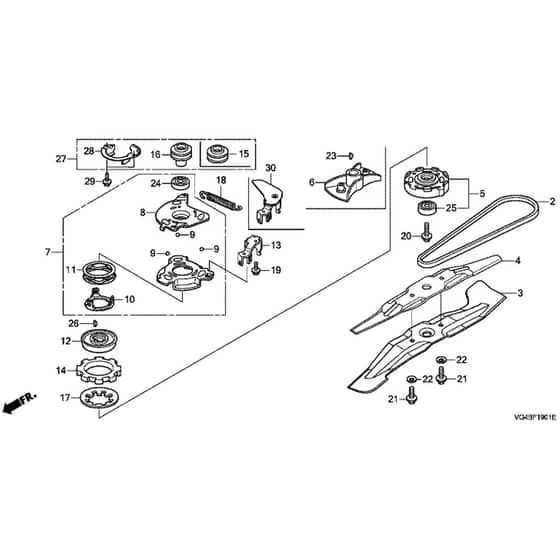

Honda HRG536C7-VYEA Rotary Mower Parts Diagram

	Part No.	Details
2	HP22431-VL0-P01 In stock	2 Belt	£32.56 £27.13
3	HP72511-VL0-S00 Available to backorder	3 Blade	£46.22 £38.52
4	HP72531-VH7-000 In stock	4 Upper Blade	£52.08 £43.40

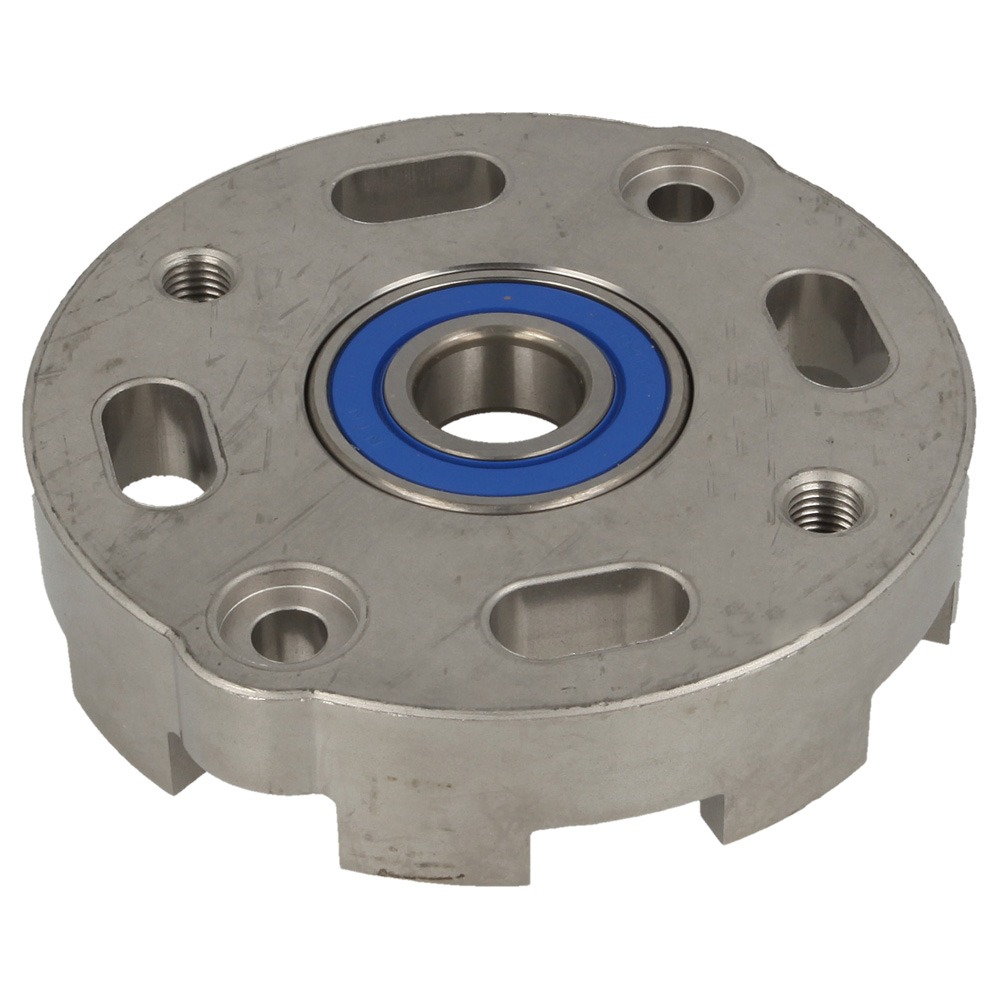

5	HP72600-VE1-G00 Available to backorder	5 Blade Holder Assy	£71.04 £59.20
7	HP75110-VE1-R00 Available to backorder	7 Ball Control Plate	£88.92 £74.10
8	HP75111-VE1-G01 Available to backorder	8 Control Plate	£16.94 £14.12
9	HP75117-VE1-G00 Available to backorder	9 Bearing	£3.42 £2.85
10	HP75127-VE1-G00 Available to backorder	10 Spring Hook Plate	£13.38 £11.15
11	HP75132-VE1-G00 Available to backorder	11 Spring	£10.45 £8.71
12	HP75141-VE1-G00 Available to backorder	12 Drive Disk	£29.60 £24.67
13	HP75143-VE1-G00 Available to backorder	13 Return Spring Hook	£8.29 £6.91
14	HP75150-VE1-G02 In stock	14 Driven Disk Assy	£74.24 £61.87
16	HP75162-VL0-H00 Available to backorder	16 Pulley	£54.91 £45.76
17	HP75183-VE1-G01 In stock	17 Clutch Spring	£9.74 £8.12
18	HP75185-VE1-G00 In stock	18 Clutch Return Spring	£12.35 £10.29
19	HP90014-952-000 Available to backorder	19 Flange Bolt 6 X 14	£3.77 £3.14
20	HP90101-VE1-G00 Available to backorder	20 Flange Bolt 10 X 24	£2.80 £2.33
21	HP90105-960-710 In stock	21 Blade Bolt	£2.99 £2.49
22	HP90502-VG3-000 In stock	22 Spring Washer 10Mm	£1.76 £1.47
24	HP91051-VE1-G00 Available to backorder	24 Bearing	£25.42 £21.18
25	HP91102-VA4-013 In stock	25 Bearing	£27.20 £22.67
26	HP94401-16150 In stock	26 Woodruff Key	£0.59 £0.49
27	HP06751-VL0-H00 Available to backorder	27 Drive Pulley Kit	£70.80 £59.00
28	HP22453-VL0-H00 Available to backorder	28 Belt Guide	£38.36 £31.97
