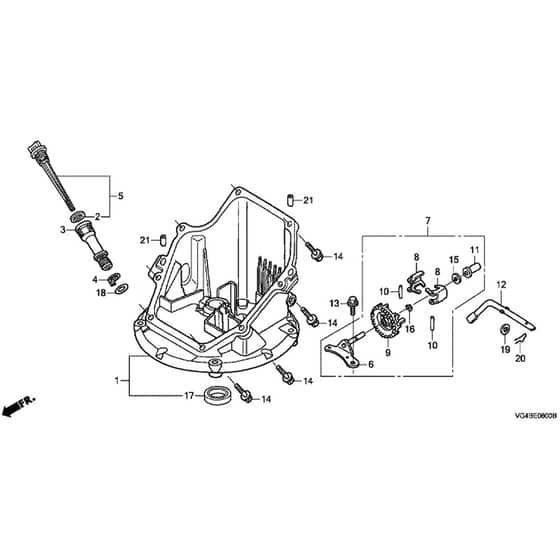

Honda HRG536C7-VKEA - Oil Pan Diagram

Name: Honda HRG536C7-VKEA - Oil Pan Diagram
SKU: hrg536c7_vkea_oil_pan-group
Price: 0.7 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HRG536C7-VKEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-Z0L-406 Available to backorder	1 Crankcase	£154.20 £128.50
2	HP15625-ZE6-000 Available to backorder	2 Gasket	£3.56 £2.97
3	HP15631-ZM0-000 Available to backorder	3 Dipstick Tube	£8.59 £7.16
4	HP15639-ZM0-000 Available to backorder	4 Extension Lock Washer	£0.84 £0.70
5	HP15650-ZM0-801 Available to backorder	5 Oil Level Gauge Assy	£8.70 £7.25
6	HP16508-Z8B-003 Available to backorder	6 Shaft Comp Governor Hol	£6.90 £5.75
7	HP16510-Z8B-000 Available to backorder	7 Governor Assy	£19.86 £16.55
8	HP16511-ZL8-000 Available to backorder	8 Governor Weight	£1.85 £1.54
9	HP16512-ZM0-000 Available to backorder	9 Governor Weight Holder	£6.77 £5.64
10	HP16513-ZE1-000 Available to backorder	10 Governor Weight Pin	£1.96 £1.63
11	HP16531-ZE1-000 Available to backorder	11 Governor Slider	£4.15 £3.46
12	HP16541-Z8B-000 Available to backorder	12 Shaft	£1.99 £1.66
13	HP90014-952-000 Available to backorder	13 Flange Bolt 6 X 14	£3.73 £3.11
14	HP90121-952-000 Available to backorder	14 Flange Bolt 6 X 25	£2.84 £2.37
15	HP90451-ZE1-000 Available to backorder	15 Thrust Washer 6Mm	£1.92 £1.60
16	HP90602-ZE1-000 Available to backorder	16 Governor Holder Clip	£3.70 £3.08
17	HP91202-ZL8-003 Available to backorder	17 Oil Seal 28 X 41.25 X 6	£8.99 £7.49
18	HP91303-KF0-003 Available to backorder	18 O-Ring 14.8 X 2.4	£4.39 £3.66
19	HP94101-06800 Available to backorder	19 Plain Washer 6Mm	£0.96 £0.80
20	HP94251-08000 In stock	20 Lock Pin 8Mm	£1.86 £1.55
21	HP90701-Z8B-000 Available to backorder	21 Dowel Pin 8 X 20	£4.01 £3.34
