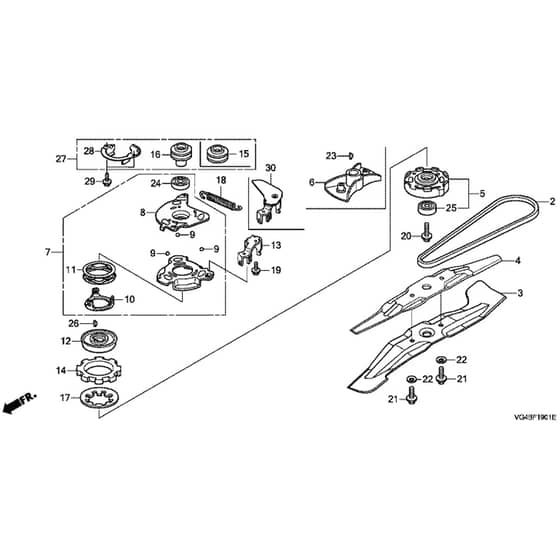

Honda HRG536C7-VKEA - Driven Pulley Diagram

Description

Honda HRG536C7-VKEA Rotary Mower Parts Diagram

	Part No.	Details
2	HP22431-VL0-P01 In stock	2 Belt	£29.80 £24.83
3	HP72511-VL0-S00 Available to backorder	3 Blade	£46.22 £38.52
4	HP72531-VH7-000 In stock	4 Upper Blade	£49.28 £41.07
6	HP72610-VG3-030 Available to backorder	6 Blade Holder Assy	£67.92 £56.60
15	HP75161-VL0-S00 Available to backorder	15 Pulley	£57.66 £48.05
20	HP90109-VG3-000 Available to backorder	20 Flange Bolt 3/8-24 X 1	£1.01 £0.84
21	HP90105-VA3-J01 In stock	21 Bolt Hex 10 X 25	£4.08 £3.40
22	HP90502-VG3-000 Available to backorder	22 Spring Washer 10Mm	£1.64 £1.37
23	HP90751-VG3-000 Available to backorder	23 Key	£0.47 £0.39
27	HP06751-VL0-S00 Available to backorder	27 Drive Pulley Kit	£69.46 £57.88
28	HP22453-VL0-S00 Available to backorder	28 Belt Guide	£37.08 £30.90
29	HP90014-952-000 Available to backorder	29 Flange Bolt 6 X 14	£3.73 £3.11
