Honda HRG536C6 - SDEA - MZCG 7660001- Handle Pipe Diagram

Name: Honda HRG536C6 - SDEA - MZCG 7660001- Handle Pipe Diagram
SKU: hrg536c6_sdea_mzcg_7660001_handle_pipe-group
Price: 0.4 GBP
Availability: InStock

Part No. hrg536c6_sdea_mzcg_7660001_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

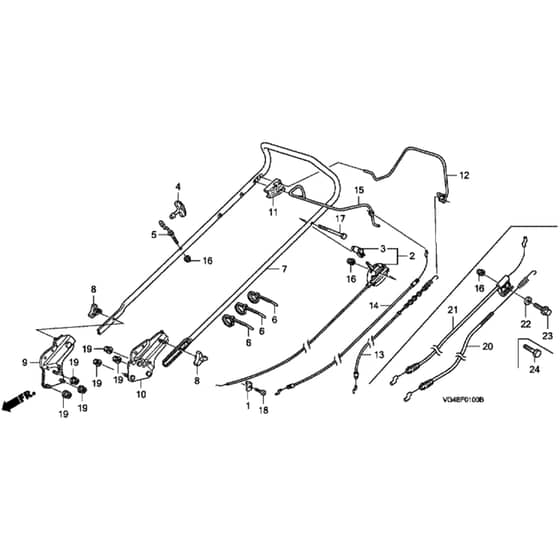

Honda HRG536C6 - SDEA - MZCG 7660001- Handle Pipe Diagram

Description

Honda HRG536C6 - SDEA Rotary Mower Parts Diagram

	Part No.	Details
5	HP28475-VE1-T00 Available to backorder	Rope Guide	£3.85 £3.21
6	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
7	HP53111-VG3-D01ZA Available to backorder	Upper Handle	£121.20 £101.00
8	HP53125-VG3-000 Available to backorder	Handle Grip	£3.79 £3.16
9	HP53130-VL0-U00 Available to backorder	Stay	£21.72 £18.10
10	HP53135-VL0-U00 Available to backorder	Handle Stay L H	£22.84 £19.03
11	HP54315-VG3-D00 In stock	Lever Stopper	£4.21 £3.51
12	HP54411-VG3-D50 Available to backorder	Clutch Lever	£56.12 £46.77
15	HP75191-VG3-D00 Available to backorder	Brake Lever	£36.17 £30.14
16	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
19	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.25 £2.71
20	HP54510-VG4-C50 In stock	Clutch Cable	£37.46 £31.22
21	HP54530-VG3-D01 Available to backorder	Brake Cable Assy	£45.06 £37.55
24	HP93301-060-400A Available to backorder	Bolt	£0.48 £0.40
