Honda HRG536C6 - SDEA - MZCG 7660001- Cylinder Barrel Diagram

Description

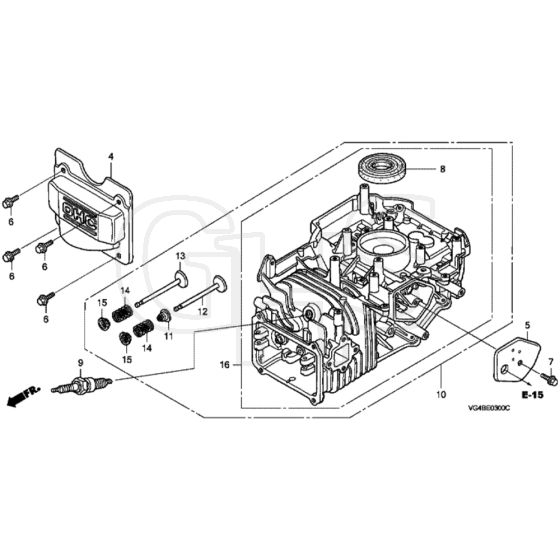

Honda HRG536C6 - SDEA Rotary Mower Parts Diagram

	Part No.	Details
4	HP12311-ZL8-D00 Available to backorder	Rocker Cover	£8.90 £7.42
5	HP12355-ZL8-000 Available to backorder	Breather Cover Assy	£10.72 £8.93
6	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
7	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
8	HP91201-ZL8-003 Available to backorder	Oil Seal 25.4 X 62 X 6	£9.64 £8.03
9	2135 In stock	Spark Plug	£2.78 £2.32
11	HP12209-ZM0-003 Available to backorder	Valve Stem Seal	£8.57 £7.14
12	HP14711-ZL8-000 Available to backorder	Inlet Valve	£10.58 £8.82
13	HP14721-ZL8-000 Available to backorder	Exhaust Valve	£12.25 £10.21
14	HP14751-ZL8-000 Available to backorder	Valve Spring	£2.69 £2.24
15	HP14771-Z0J-000 Available to backorder	Valve Spring Retainer	£5.23 £4.36
16	HP12000-Z0L-419 Available to backorder	Cylinder Assy	£245.28 £204.40
16	HP06120-Z0L-305 Available to backorder	Kit Cyln Barrel	£362.40 £302.00
