Honda HRG536C5 - SDEA - MZCG 7630001-7659999 Transmission Diagram

Name: Honda HRG536C5 - SDEA - MZCG 7630001-7659999 Transmission Diagram
SKU: hrg536c5_sdea_mzcg_7630001_7659999_transmission-group
Price: 0.67 GBP
Availability: InStock

Part No. hrg536c5_sdea_mzcg_7630001_7659999_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C5 - SDEA - MZCG 7630001-7659999 Transmission Diagram

Description

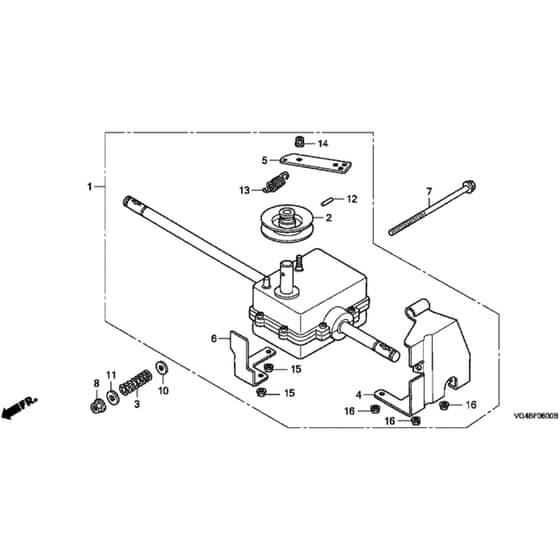

Honda HRG536C5 - SDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VG4-B51 Available to backorder	Transmission Assy	£230.40 £192.00
2	HP22420-VG4-B50 Available to backorder	Pulley	£43.45 £36.21
3	HP22531-VG3-B00 Available to backorder	Belt Tension Spring	£10.18 £8.48
4	HP51125-VG4-B50 Available to backorder	Wire Holder	£20.40 £17.00
5	HP51126-VG4-B50 Available to backorder	Clutch Arm	£15.36 £12.80
6	HP51127-VG4-B50 Available to backorder	Bracket	£7.76 £6.47
7	HP90107-VG3-B00 Available to backorder	Bolt	£4.51 £3.76
8	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
10	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
12	HP94305-50321 Available to backorder	Pin	£1.56 £1.30
13	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
14	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
