Honda HRG536C2 - SDEA - MZCG 6400001-6499999 Transmission Diagram

Description

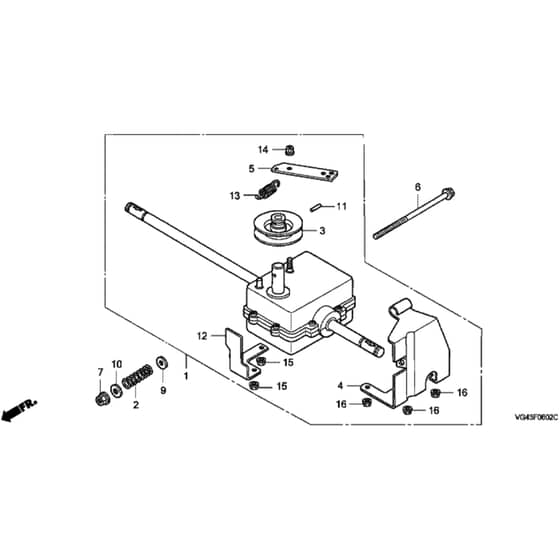

Honda HRG536C2 - SDEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VG4-B51 Available to backorder	Transmission Assy	£215.48 £179.57
2	HP22531-VG3-B00 Available to backorder	Belt Tension Spring	£9.84 £8.20
3	HP22420-VG4-B50 Available to backorder	Pulley	£44.10 £36.75
4	HP51125-VG4-B50 Available to backorder	Wire Holder	£20.40 £17.00
5	HP51126-VG4-B50 Available to backorder	Clutch Arm	£15.59 £12.99
6	HP90107-VG3-B00 Available to backorder	Bolt	£4.56 £3.80
7	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
9	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
11	HP94305-50321 Available to backorder	Pin	£1.58 £1.32
12	HP51127-VG4-B50 Available to backorder	Bracket	£7.87 £6.56
13	HP23439-VE0-851 Available to backorder	Clutch Arm Return Spring	£4.56 £3.80
14	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.76 £4.80
