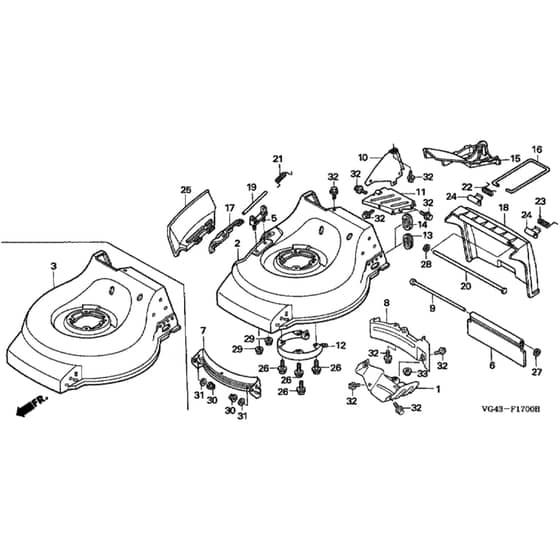

Honda HRG536C1 - SDF/A - MZCG 6600001-6699999 Cutter Housing Diagram

Name: Honda HRG536C1 - SDF/A - MZCG 6600001-6699999 Cutter Housing Diagram
SKU: hrg536c1_sdf_a_mzcg_6600001_6699999_cutter_housing-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C1 - SDF/A - MZCG 6600001-6699999 Cutter Housing Diagram

Description

Honda HRG536C1 - SDF/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP63610-VG4-020 In stock	Cover	£18.66 £15.55
6	HP06761-VG3-305 Available to backorder	Shield Kit	£60.36 £50.30
7	HP76125-VG3-010 In stock	Front Scroll	£29.26 £24.38
8	HP76131-VG4-020 Available to backorder	Scroll	£21.72 £18.10
9	HP76138-VG3-010 Available to backorder	Shaft	£6.30 £5.25
10	HP76142-VG4-020 Available to backorder	Scroll Plate	£26.69 £22.24
11	HP76143-VG4-010 Available to backorder	Guide Plate	£19.00 £15.83
12	HP76147-VG4-000 Available to backorder	Roto-Stop Cover	£35.64 £29.70
13	HP91651-VH3-850 Available to backorder	Cable Grommet	£1.57 £1.31
14	HP76232-VG3-000 Available to backorder	Grommet	£2.08 £1.73
15	HP76266-VG4-000ZA Available to backorder	Stuffing	£58.68 £48.90
16	HP76267-VG4-A50 Available to backorder	Stuffing Stopper	£48.13 £40.11
18	HP76281-VG4-A51ZA Available to backorder	Discharge Guard	£34.98 £29.15
20	HP76282-VG4-010 Available to backorder	Discharge Guard Shaft	£16.08 £13.40
22	HP76284-VG4-000 Available to backorder	Guard Return Spring R H	£3.24 £2.70
23	HP76294-VG4-000 Available to backorder	Guard Return Spring L H	£3.24 £2.70
24	HP81152-VG4-000 In stock	Hinge Plate	£3.91 £3.26
26	HP90104-VG3-000 Available to backorder	Flange Bolt	£1.16 £0.97
27	HP90301-VG3-010 Available to backorder	Push Nut	£2.02 £1.68
28	HP90301-VG4-000 In stock	Push Nut	£1.08 £0.90
30	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.22 £2.68
31	HP90506-VG3-000 Available to backorder	Plain Washer 5/16	£2.81 £2.34
32	HP95701-0601000 Available to backorder	Bolt	£0.90 £0.75
33	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
