Honda HRG536C1 - PDE - MZCG 6300001-6399999 Handle Pipe Diagram

Name: Honda HRG536C1 - PDE - MZCG 6300001-6399999 Handle Pipe Diagram
SKU: hrg536c1_pde_mzcg_6300001_6399999_handle_pipe-group
Price: 0.67 GBP
Availability: InStock

Part No. hrg536c1_pde_mzcg_6300001_6399999_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C1 - PDE - MZCG 6300001-6399999 Handle Pipe Diagram

Description

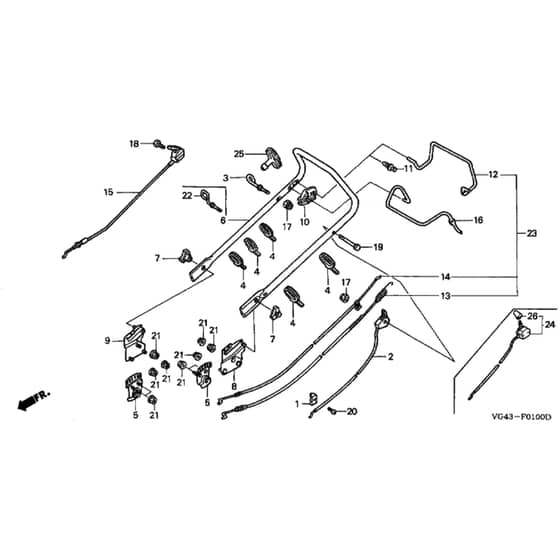

Honda HRG536C1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16617-VG3-000 Available to backorder	Cable Holder	£1.84 £1.53
2	HP17850-VG3-D01 Available to backorder	Throttle Lever Assy	£29.29 £24.41
4	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
5	HP42990-VG4-010 Available to backorder	Panel	£11.38 £9.48
6	HP53111-VG3-D01ZA Available to backorder	Upper Handle	£121.20 £101.00
7	HP53125-VG3-000 Available to backorder	Handle Grip	£3.79 £3.16
8	HP53130-VG4-C00 Available to backorder	Handle Stay	£20.17 £16.81
9	HP53135-VG4-C00 Available to backorder	Handle Stay L H	£20.47 £17.06
10	HP54315-VG3-D00 In stock	Lever Stopper	£4.21 £3.51
11	HP54316-VG3-000 Available to backorder	Pin	£1.58 £1.32
12	HP54411-VG3-D50 Available to backorder	Clutch Lever	£56.12 £46.77
13	HP54510-VG4-C50 In stock	Clutch Cable	£37.46 £31.22
14	HP54530-VG3-D01 Available to backorder	Brake Cable Assy	£45.06 £37.55
16	HP75191-VG3-D00 Available to backorder	Brake Lever	£36.17 £30.14
17	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
19	HP92101-06060-0A Available to backorder	Bolt	£1.82 £1.52
20	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.51 £1.26
21	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.25 £2.71
22	HP28475-VE1-T00 Available to backorder	Rope Guide	£3.85 £3.21
