Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Rear Wheel Diagram

Description

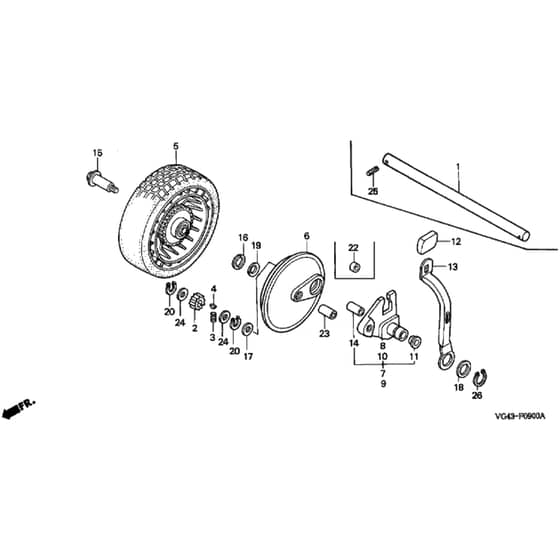

Honda HRG536C1 - PDE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP23371-VG4-000 Available to backorder	Wheel Shaft	£21.37 £17.81
2	HP42661-VE2-800 In stock	Pinion Gear	£10.86 £9.05
3	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
4	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
5	HP42710-VE2-M02ZE In stock	Wheel	£54.26 £45.22
6	HP42866-VE2-800 Available to backorder	Cover	£15.94 £13.28
7	HP42930-VG3-B01 Available to backorder	Adjuster Arm Assy Rear R H	£22.74 £18.95
8	HP42931-VG3-010 Available to backorder	Bracket	£0.62 £0.52
10	HP42940-VG3-B01 Available to backorder	Adjuster Arm Front L H	£22.74 £18.95
11	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£10.07 £8.39
12	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.69 £1.41
13	HP42961-VG3-010 In stock	Rear Adjuster Plate	£14.95 £12.46
14	HP44327-VG3-B00 In stock	Drive Shaft Bush	£8.05 £6.71
15	HP90102-VG3-000 In stock	Wheel Shaft Bolt	£4.60 £3.83
16	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
17	HP90502-VE2-800 In stock	Thrust Washer 13Mm	£4.48 £3.73
18	HP90503-VG3-000 In stock	Flat Washer	£1.08 £0.90
19	HP90505-VG3-000 Available to backorder	Thrust Washer 13 X 27 X 1	£1.03 £0.86
20	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.69 £1.41
22	HP91552-VG3-000 Available to backorder	Collar	£1.16 £0.97
24	HP91559-VE2-800 In stock	Pinion Gear Collar	£1.81 £1.51
25	HP94201-30250 Available to backorder	Split Pin 3.0 X 25	£1.14 £0.95
26	HP94510-25000 In stock	External Circlip 25Mm	£1.63 £1.36
