Honda HRG466K1-SKEX - Rear Wheel Diagram

Name: Honda HRG466K1-SKEX - Rear Wheel Diagram
SKU: hrg466k1_skex_rear_wheel-group
Price: 0.33 GBP
Availability: InStock

Part No. hrg466k1_skex_rear_wheel-group

Description

Honda HRG466K1-SKEX Rotary Mower Parts Diagram

	Part No.	Details
1	HP41418-VE0-800 Available to backorder	1 Drive Shaft Collar	£14.96 £12.47

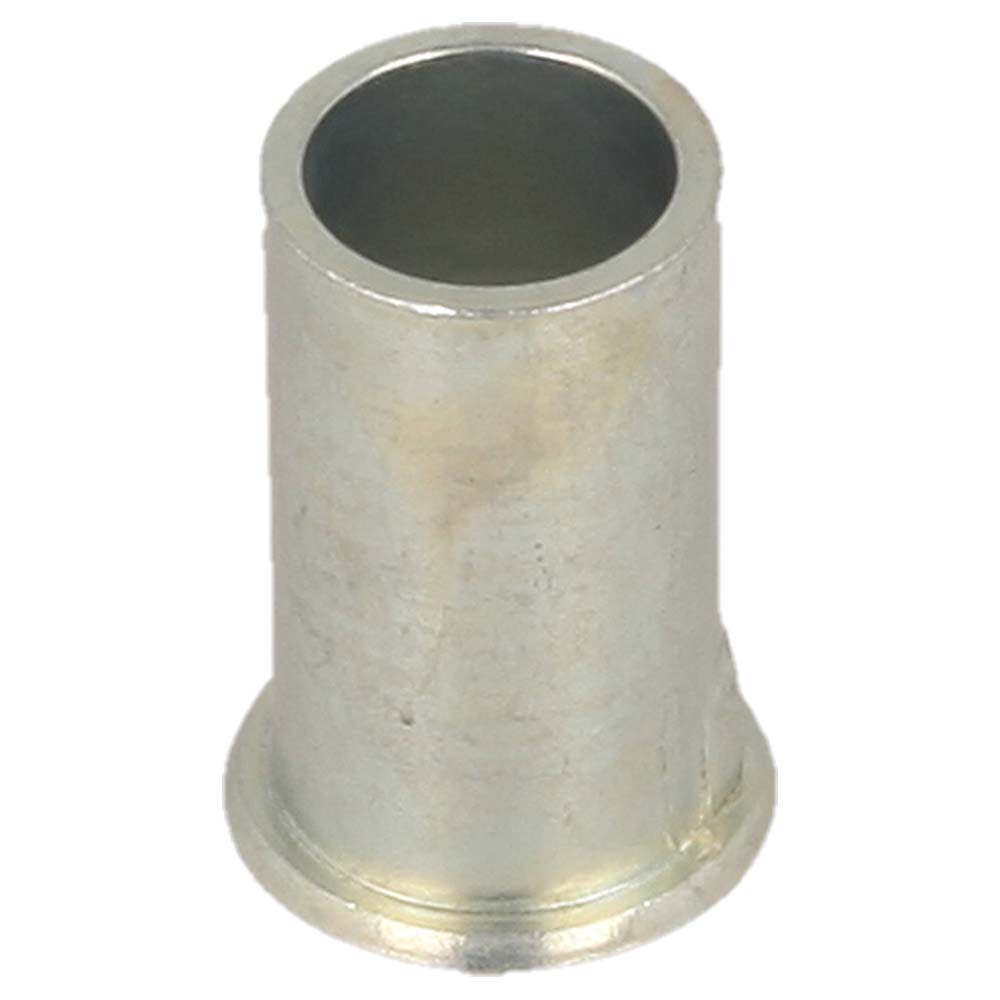

1	HP41418-VH3-R20 Available to backorder	1 Driveshaft Collar	£13.49 £11.24
2	HP42310-VH4-R20 Available to backorder	2 Axle Shaft	£70.32 £58.60
2	HP42310-VH4-850 Available to backorder	2 Rear Axle Shaft	£60.52 £50.43
3	HP42661-VH3-850 In stock	3 Pinion Gear	£7.58 £6.32
4	HP42668-VE2-800 In stock	4 Pawl Spring	£1.21 £1.01
5	HP42672-VE2-800 In stock	5 Ratchet Key	£4.33 £3.61
7	HP42716-VE0-800 In stock	7 Wheel Bush	£3.97 £3.31
8	HP42866-VE0-800ZA Available to backorder	8 Wheel Cover	£5.96 £4.97
9	HP42868-VA9-K40 Available to backorder	9 Wheel Cap	£1.57 £1.31
10	HP42944-VA2-702 Available to backorder	10 Dust Seal 12Mm	£7.68 £6.40
11	HP42960-VH3-R10 In stock	11 Rear Height Lever Assy	£28.76 £23.97
12	HP44327-VH3-Y10 Available to backorder	12 Drive Shaft Bush	£13.09 £10.91
13	HP90110-VA4-000 In stock	13 Wheel Bolt	£6.44 £5.37
14	HP90452-166-600 In stock	14 Washer	£0.40 £0.33
15	HP90459-360-000 Available to backorder	15 Thrust Washer	£3.60 £3.00
16	HP90502-VH3-N20 Available to backorder	16 Thrust Washer	£4.74 £3.95

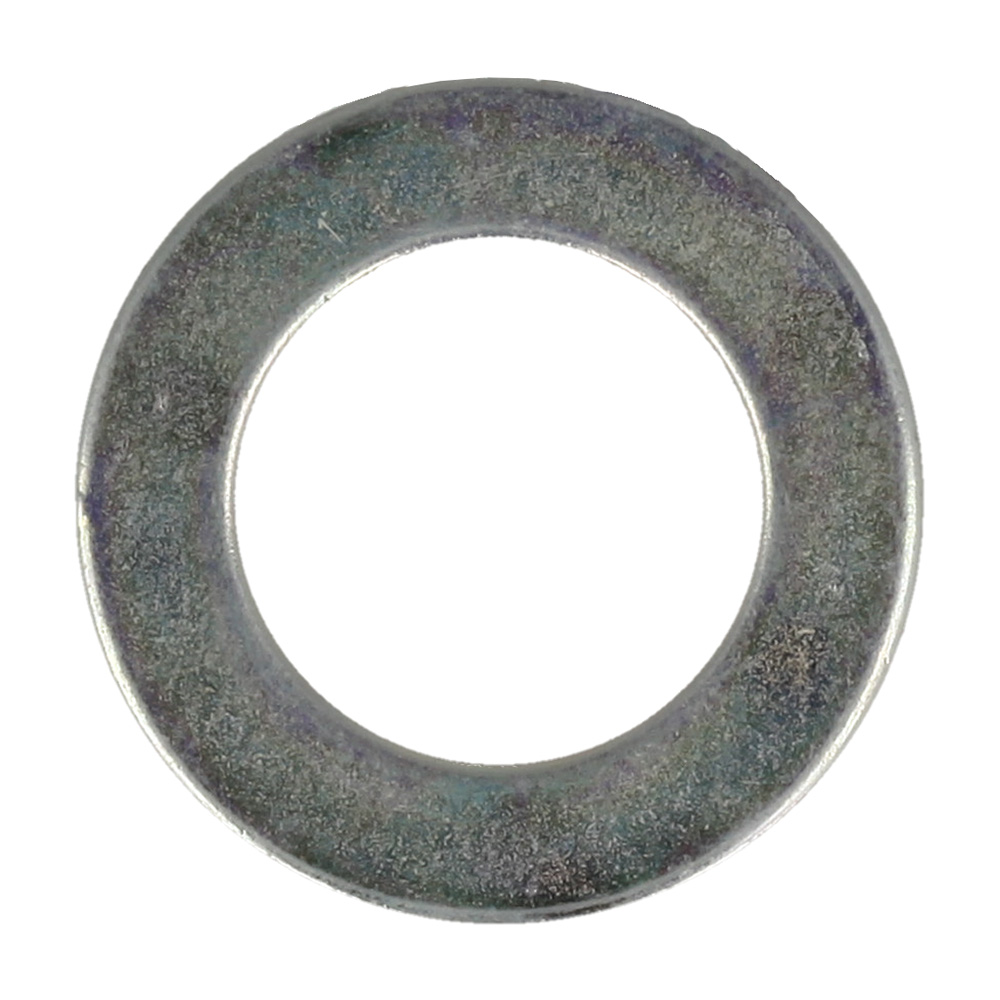

17	HP90505-VA9-K40 In stock	17 Washer 13Mm	£2.20 £1.83
18	HP90506-VA9-K41 Available to backorder	18 Wheel Washer	£4.24 £3.53
19	HP90842-VH3-N10 Available to backorder	19 Rivet 6Mm	£2.94 £2.45
20	HP94510-12000 In stock	20 External Circlip 12Mm	£1.19 £0.99
21	HP94510-20000 Available to backorder	21 External Circlip 20Mm	£1.72 £1.43
22	HP42710-VH3-R20ZA In stock	22 Wheel	£50.36 £41.97
