Honda HRG466K1-SKEA - Cutter Housing Diagram

Name: Honda HRG466K1-SKEA - Cutter Housing Diagram
SKU: hrg466k1_skea_cutter_housing-group
Price: 1.16 GBP
Availability: InStock

Part No. hrg466k1_skea_cutter_housing-group

Description

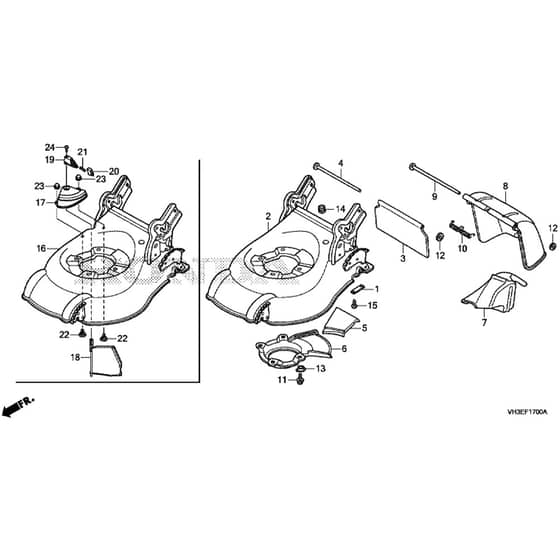

Honda HRG466K1-SKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42938-VH3-850 Available to backorder	1 Axle Holder	£1.39 £1.16

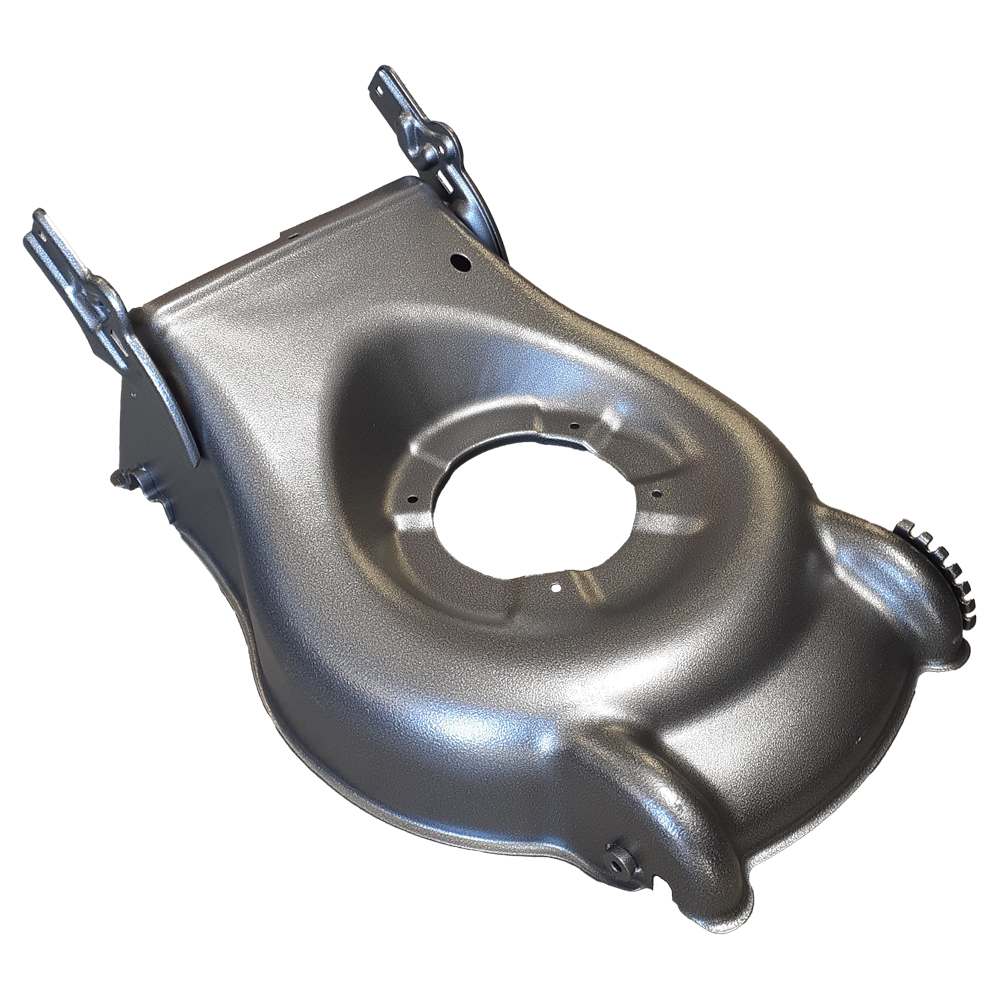

2	HP76110-VH4-P50ZC Available to backorder	2 Deck	£204.60 £170.50
3	HP76118-VH4-010 Available to backorder	3 Shield	£13.60 £11.33
4	HP76138-VH4-000 Available to backorder	4 Shield Shaft	£16.49 £13.74
5	HP76143-VH4-010 In stock	5 Guide Plate	£11.26 £9.38
6	HP76147-VH4-010 Available to backorder	6 Roto-Stop Cover	£29.16 £24.30
8	HP76281-VH4-010ZB Available to backorder	8 Discharge Guard	£45.49 £37.91
9	HP76282-VH4-000 Available to backorder	9 Guard Shaft	£10.01 £8.34
10	HP76284-VH3-N10 Available to backorder	10 Guard Return Spring	£8.46 £7.05
11	HP90102-VA4-000 Available to backorder	11 Engine Setting Bolt	£3.71 £3.09
12	HP90301-VK8-J50 Available to backorder	12 Push Nut	£5.17 £4.31
13	HP90501-VH3-000 Available to backorder	13 Roto Stop Cover Washer	£2.36 £1.97
14	HP91651-VH3-850 Available to backorder	14 Cable Grommet	£1.60 £1.33
15	HP93904-35210 Available to backorder	15 Self Tapping Screw	£1.86 £1.55
