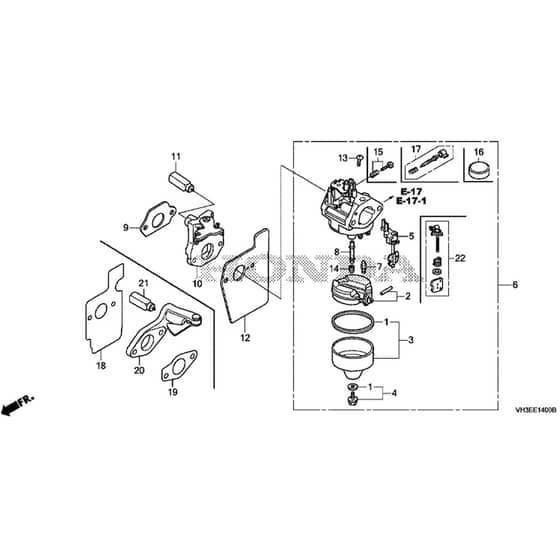

Honda HRG466K1-PKEA - Carburettor Diagram

Description

Honda HRG466K1-PKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-883-015 In stock	1 Gasket Set	£12.22 £10.18
2	HP16013-ZL1-003 Available to backorder	2 Float Set	£36.11 £30.09
3	HP16015-Z0L-881 Available to backorder	3 Float Bowl	£57.41 £47.84
4	HP16028-ZK7-S91 Available to backorder	4 Screw Set	£14.59 £12.16
5	HP16044-Z8B-901 Available to backorder	5 Choke Set Assy	£71.04 £59.20
6	HP16100-Z0L-N21 Available to backorder	6 Carburettor Assy	£114.72 £95.60
6	HP16100-Z8B-871 Available to backorder	6 Carburettor Assy	£99.24 £82.70
7	HP16155-ZM0-013 In stock	7 Float Valve	£46.32 £38.60
8	HP16166-Z8B-901 Available to backorder	8 Main Nozzle	£44.57 £37.14
8	HP16166-Z2C-003 Available to backorder	8 Main Nozzle	£41.70 £34.75
9	HP16212-Z8B-900 Available to backorder	9 Insulator Gasket	£11.72 £9.77
10	HP16600-Z8B-900 Available to backorder	10 Choke Control Assy	£77.69 £64.74
11	HP16620-Z8D-842 In stock	11 Thermowax Assy	£39.01 £32.51
12	HP19651-Z0L-000 In stock	12 Air Guide	£3.91 £3.26
13	HP93500-050-060H Available to backorder	13 Pan Screw	£2.35 £1.96
14	HP99101-1240600 Available to backorder	14 Main Jet	£12.22 £10.18
14	HP99101-124-0580 Available to backorder	14 Jet	£12.22 £10.18
14	HP99101-1240620 Available to backorder	14 Main Jet	£12.22 £10.18
14	HP99101-1240550 Available to backorder	14 Jet	£12.22 £10.18
14	HP99101-1240650 Available to backorder	14 Jet	£12.22 £10.18
15	HP16029-ZG0-901 Available to backorder	15 Throttle Stop Screw Set	£14.17 £11.81
16	HP16148-Z1L-851 Available to backorder	16 Choke Dust Cap	£6.23 £5.19
