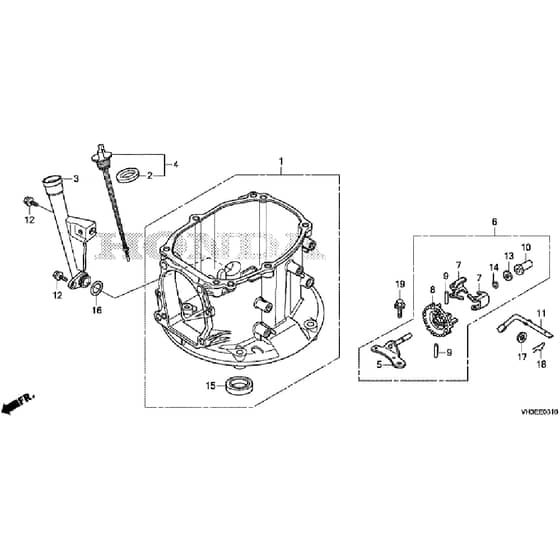

Honda HRG466C1 - SKEP - Crankcase Diagram

Description

Honda HRG466C1 - SKEP Rotary Mower Parts Diagram

	Part No.	Details
1	HP11100-Z9L-416	Crankcase Assy	Out of stock	£332.24 £276.87
2	HP15625-ZE6-000	Gasket	Out of stock	£3.16 £2.63
3	HP15631-Z9L-000	Oil Filler	Out of stock	£20.22 £16.85
4	HP15650-Z9L-000	Oil Level Gauge Assy	Out of stock	£11.39 £9.49
5	HP16508-ZM0-010	Governor Holder Shaft	Out of stock	£7.31 £6.09
6	HP16510-ZM0-010	Governor Assy	Out of stock	£23.15 £19.29
7	HP16511-ZL8-000	Governor Weight	Out of stock	£1.85 £1.54
8	HP16512-ZM0-000	Governor Weight Holder	Out of stock	£6.49 £5.41
9	HP16513-ZE1-000	Governor Weight Pin	Out of stock	£2.32 £1.93
10	HP16531-ZE1-000	Governor Slider	Out of stock	£5.14 £4.28
10	HP16531-Z1T-000	Governor Slider	Out of stock	£4.73 £3.94
11	HP16541-Z9L-000	Governor Arm Saft	Out of stock	£4.67 £3.89
12	HP90013-ZL8-000	Flange Bolt 6X14 Ct200	In stock	£1.73 £1.44
13	HP90451-Z1T-000	Washer	Out of stock	£2.08 £1.73
13	HP90451-ZE1-000	Thrust Washer 6Mm	Out of stock	£2.16 £1.80
14	HP90602-ZE1-000	Governor Holder Clip	Out of stock	£3.91 £3.26
15	HP91202-ZM0-V31	Oil Seal 28 X 41.25 X 6	Out of stock	£9.73 £8.11
15	HP91202-Z9L-003	Oil Seal 28 X 41.25 X 6	Out of stock	£16.20 £13.50
15	HP91202-Z9R-003	Oil Seal	Out of stock	£14.72 £12.27
16	HP91301-Z9L-000	O-Ring 19.1X2.2	Out of stock	£1.82 £1.52
17	HP94101-06800	Plain Washer 6Mm	Out of stock	£1.09 £0.91
18	HP94251-08000	Lock Pin 8Mm	Out of stock	£1.75 £1.46
19	HP95701-0601408	Flange Bolt 6 X 14	Out of stock	£1.50 £1.25
