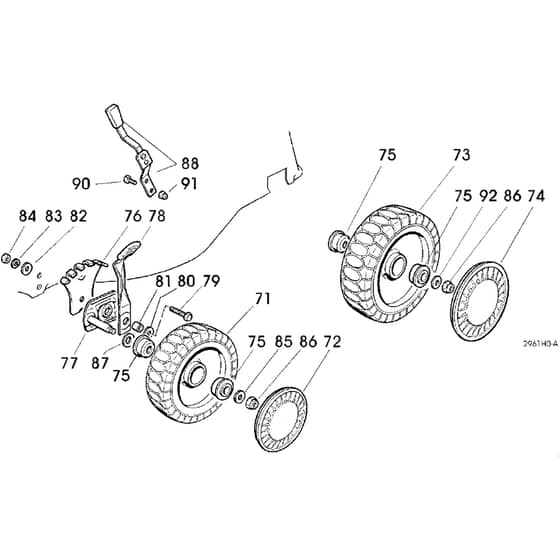

Honda HRG465CSX (1999) - SXI - MADF 8900001-8999999 Wheels and Height Adjusting Diagram

Name: Honda HRG465CSX (1999) - SXI - MADF 8900001-8999999 Wheels and Height Adjusting Diagram
SKU: hrg465csx_1999_sxi_madf_8900001_8999999_wheels_and_height_adjust
Price: 0.4 GBP
Availability: InStock

Part No. hrg465csx_1999_sxi_madf_8900001_8999999_wheels_and_height_adjust

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465CSX (1999) - SXI - MADF 8900001-8999999 Wheels and Height Adjusting Diagram

Description

Honda HRG465CSX (1999) - SXI Rotary Mower Parts Diagram

	Part No.	Details
72	HP80042-Y10-003 Available to backorder	Hub Cap	£1.30 £1.08
73	HP80043-Y10-003 Available to backorder	Wheel Ø 210	£33.50 £27.92
74	HP80044-Y10-003 Available to backorder	Hub Cap	£1.80 £1.50
75	HP80068-Y10-003 Available to backorder	Bearing	£4.50 £3.75
77	HP80047-Y10-003 Available to backorder	Wheel Support	£22.99 £19.16
78	HP80048-Y10-003 Available to backorder	Adjustment Lever	£7.99 £6.66
79	HP80058-Y09-003 Available to backorder	Screw	£2.76 £2.30
81	HP80050-Y10-003 Available to backorder	Spacer	£4.70 £3.92
82	HP80036-Y09-003 In stock	Washer	£6.01 £5.01
83	HP80045-Y09-003 In stock	Grower	£1.55 £1.29
84	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
86	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
88	HP80054-Y10-003 Available to backorder	Adjustment Lever	£22.78 £18.98
90	HP80090-Y09-003 Available to backorder	Screw	£2.77 £2.31
91	HP80001-VJ5-003 Available to backorder	Nut	£0.73 £0.61
92	HP80057-Y10-003 Available to backorder	Elastic Washer	£2.14 £1.78
