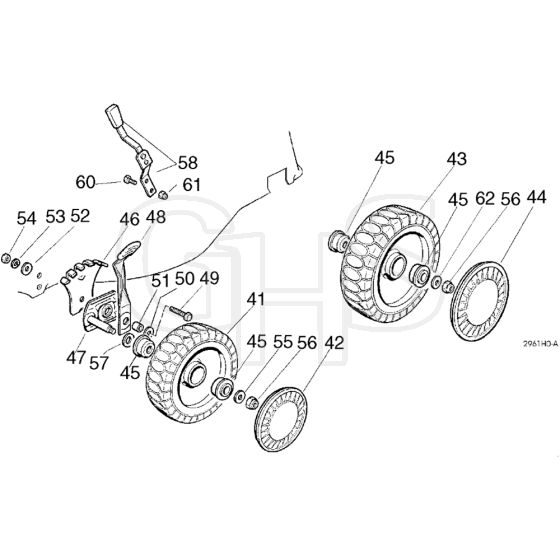

Honda HRG465CSD (2002) - SDI - MADF 8200001-8299999 Wheels and Height Adjusting Diagram

Name: Honda HRG465CSD (2002) - SDI - MADF 8200001-8299999 Wheels and Height Adjusting Diagram
SKU: hrg465csd_2002_sdi_madf_8200001_8299999_wheels_and_height_adjust
Price: 0.4 GBP
Availability: InStock

Part No. hrg465csd_2002_sdi_madf_8200001_8299999_wheels_and_height_adjust

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465CSD (2002) - SDI - MADF 8200001-8299999 Wheels and Height Adjusting Diagram

Description

Honda HRG465CSD (2002) - SDI Rotary Mower Parts Diagram

	Part No.	Details
41	HP80041-Y10-003 Available to backorder	Wheel Ø 170	£33.50 £27.92
42	HP80042-Y10-003 Available to backorder	Hub Cap	£1.30 £1.08
43	HP80043-Y10-003 Available to backorder	Wheel Ø 210	£33.50 £27.92
44	HP80044-Y10-003 Available to backorder	Hub Cap	£1.80 £1.50
45	HP80068-Y10-003 Available to backorder	Bearing	£4.50 £3.75
47	HP80047-Y10-003 Available to backorder	Wheel Support	£22.99 £19.16
48	HP80048-Y10-003 Available to backorder	Adjustment Lever	£7.99 £6.66
49	HP80058-Y09-003 Available to backorder	Screw	£2.76 £2.30
51	HP80050-Y10-003 Available to backorder	Spacer	£4.70 £3.92
52	HP80036-Y09-003 In stock	Washer	£6.01 £5.01
53	HP80045-Y09-003 In stock	Grower	£1.55 £1.29
54	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
56	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
58	HP80054-Y10-003 Available to backorder	Adjustment Lever	£22.78 £18.98
60	HP80090-Y09-003 Available to backorder	Screw	£2.77 £2.31
61	HP80001-VJ5-003 Available to backorder	Nut	£0.73 £0.61
62	HP80057-Y10-003 Available to backorder	Elastic Washer	£2.14 £1.78
