Honda HRG465CSD (2001) - SDF - MADF 8100001-8199999 Rear Drive Diagram

Name: Honda HRG465CSD (2001) - SDF - MADF 8100001-8199999 Rear Drive Diagram
SKU: hrg465csd_2001_sdf_madf_8100001_8199999_rear_drive-group
Price: 0.26 GBP
Availability: InStock

Part No. hrg465csd_2001_sdf_madf_8100001_8199999_rear_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

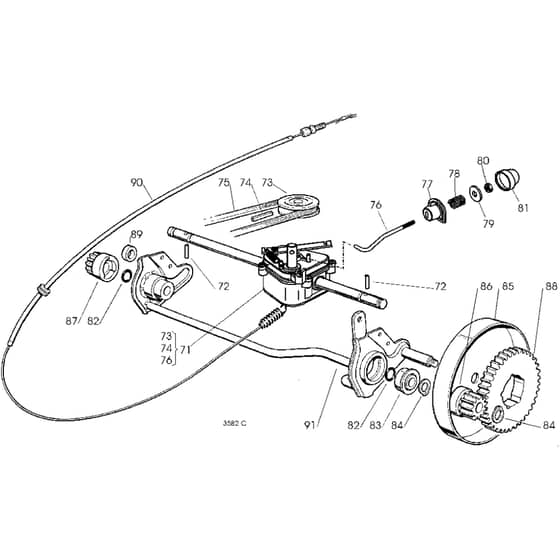

Honda HRG465CSD (2001) - SDF - MADF 8100001-8199999 Rear Drive Diagram

Description

Honda HRG465CSD (2001) - SDF Rotary Mower Parts Diagram

	Part No.	Details
71	HP80058-Y10-003 Available to backorder	Gear Box Assy	£237.72 £198.10
72	HP80059-Y10-003 Available to backorder	Pin	£3.56 £2.97
73	HP80257-Y09-003 Available to backorder	Pulley	£22.84 £19.03
74	HP80061-Y10-003 In stock	Pin	£2.46 £2.05
76	HP80063-Y10-003 Available to backorder	Adjustment Rod	£6.77 £5.64
77	HP80064-Y10-003 Available to backorder	Bush	£9.40 £7.83
78	HP80065-Y10-003 Available to backorder	Spring	£2.80 £2.33
79	HP80066-Y10-003 Available to backorder	Washer Gear Box Rod	£1.21 £1.01
80	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
81	HP80143-Y09-003 In stock	Hub Cover	£1.85 £1.54
82	HP80067-Y10-003 Available to backorder	O-Ring	£1.18 £0.98
83	HP80068-Y10-003 Available to backorder	Bearing	£4.50 £3.75
84	HP80052-VJ5-003 Available to backorder	Snap Ring For Shaft Diam 12	£0.31 £0.26
85	HP80070-Y10-003 Available to backorder	Wheel Guard	£8.39 £6.99
86	HP80071-Y10-003 Available to backorder	Left Pinion	£18.77 £15.64
87	HP80072-Y10-003 Available to backorder	Right Pinion	£18.77 £15.64
88	HP80073-Y10-003HE Available to backorder	Ring Gear	£24.55 £20.46
89	HP80074-Y10-003 Available to backorder	Spacer	£3.40 £2.83
