Honda HRG465C3 - SDEE - MADF 1400001- Rotary Blade Diagram

Description

Honda HRG465C3 - SDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP22431-VE0-L02 In stock	V-Belt (Z-32)(Sdee)	£32.34 £26.95
4	HP72611-VH3-N10 Available to backorder	Holder Blade	£75.24 £62.70
5	HP75162-VG8-750 In stock	Pulley Drive(Sdee)	£43.25 £36.04
6	HP90103-SV4-013 Available to backorder	Bolt Flange 10X30	£9.89 £8.24
8	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
9	HP90481-430-000 In stock	Washer Spring 10Mm	£1.28 £1.07
10	HP94401-16150 In stock	Key Woodruff 16X15	£0.59 £0.49

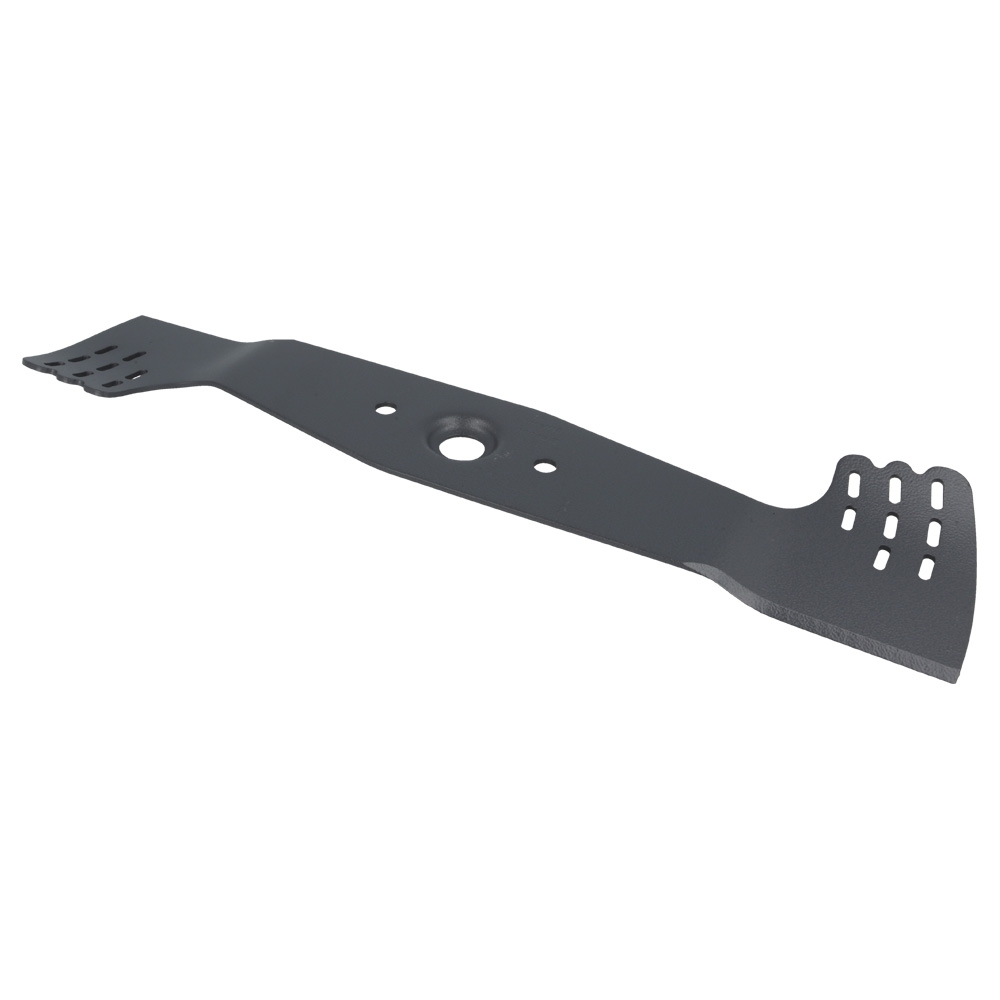

11	HP72511-VH4-N10 In stock	Blade Rotary	£46.58 £38.82
12	HP72617-VH3-N10 Available to backorder	Spacer Blade	£14.33 £11.94
