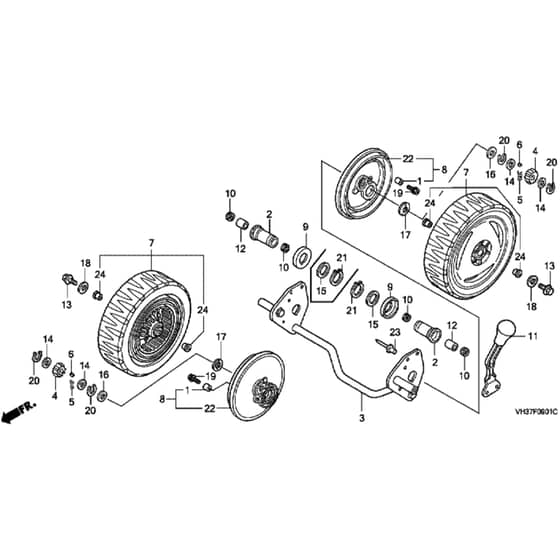

Honda HRG465C3 - SDEE - MADF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Name: Honda HRG465C3 - SDEE - MADF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram
SKU: hrg465c3_sdee_madf_1400001_rear_wheel_self_propelled_sdee_only_-
Price: 0.41 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C3 - SDEE - MADF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Description

Honda HRG465C3 - SDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HP42310-VH4-850 Available to backorder	Shaft Comp Rr Axle	£58.92 £49.10
4	HP42661-VH3-850 In stock	Gear Pinion (12T)	£6.96 £5.80
5	HP42668-VE2-800 In stock	Spring Ratchet Return	£1.10 £0.92
6	HP42672-VE2-800 In stock	Key Ratchet	£4.04 £3.37
7	HP42710-VH3-850ZB Available to backorder	Wheel Comp Rr (Nha92R Gardenia White R)	£37.80 £31.50
9	HP42868-VA9-K40 Available to backorder	Cap Wheel Cover	£1.48 £1.23
10	HP42944-VA2-702 Available to backorder	Dust Seal 12Mm	£7.44 £6.20
11	HP42960-VH3-N10ZA Available to backorder	Lever Comp Rr Height Adjusting	£31.06 £25.88
12	HP44327-VH3-Y10 Available to backorder	Bush Driveshaft	£9.96 £8.30
13	HP90110-VA4-000 In stock	Bolt Wheel	£5.76 £4.80
14	HP90452-166-600 Available to backorder	Washer Thrust 12Mm	£0.49 £0.41
17	HP90505-VA9-K40 In stock	Washer 13Mm	£2.04 £1.70
18	HP90506-VA9-K41 Available to backorder	Washer Wheel 8Mm	£4.14 £3.45
20	HP94510-12000 In stock	Circlip External 12Mm	£1.08 £0.90
21	HP94510-20000 Available to backorder	Circlip External 20Mm	£1.68 £1.40
22	HP42866-VE0-800 Available to backorder	Cover (Wheel)	£5.26 £4.38
23	HP90842-VH3-N10 Available to backorder	Rivet Blind 6Mm	£3.10 £2.58
24	HP42716-VE0-800 In stock	Bush Rr Wheel	£3.72 £3.10
