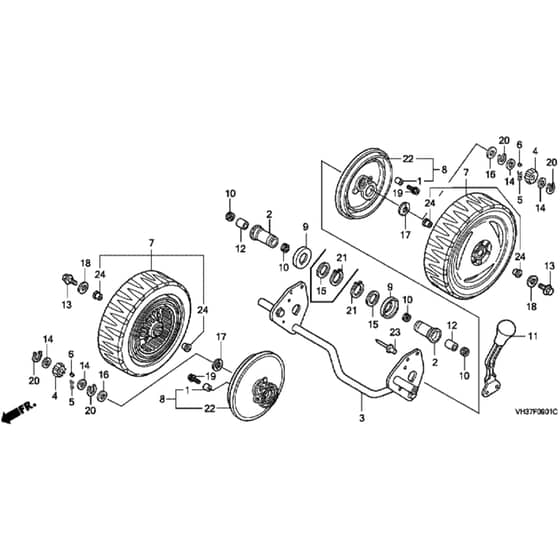

Honda HRG465C3 - PDEE - MADF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Description

Honda HRG465C3 - PDEE Rotary Mower Parts Diagram

	Part No.	Details
2	HP41418-VE0-800 Available to backorder	Collar Driveshaft	£14.96 £12.47
3	HP42310-VH4-850 Available to backorder	Shaft Comp Rr Axle	£60.52 £50.43
4	HP42661-VH3-850 In stock	Gear Pinion (12T)	£7.58 £6.32
5	HP42668-VE2-800 In stock	Spring Ratchet Return	£1.21 £1.01
6	HP42672-VE2-800 In stock	Key Ratchet	£4.33 £3.61
7	HP42710-VH3-850ZB Available to backorder	Wheel Comp Rr (Nha92R Gardenia White R)	£37.24 £31.03
9	HP42868-VA9-K40 Available to backorder	Cap Wheel Cover	£1.57 £1.31
10	HP42944-VA2-702 Available to backorder	Dust Seal 12Mm	£7.68 £6.40
11	HP42960-VH3-N10ZA In stock	Lever Comp Rr Height Adjusting	£28.76 £23.97
12	HP44327-VH3-Y10 Available to backorder	Bush Driveshaft	£13.09 £10.91
13	HP90110-VA4-000 In stock	Bolt Wheel	£6.44 £5.37
14	HP90452-166-600 In stock	Washer Thrust 12Mm	£0.40 £0.33
17	HP90505-VA9-K40 In stock	Washer 13Mm	£2.20 £1.83
18	HP90506-VA9-K41 Available to backorder	Washer Wheel 8Mm	£4.24 £3.53
20	HP94510-12000 In stock	Circlip External 12Mm	£1.19 £0.99
21	HP94510-20000 Available to backorder	Circlip External 20Mm	£1.72 £1.43
22	HP42866-VE0-800 Available to backorder	Cover (Wheel)	£5.18 £4.32
23	HP90842-VH3-N10 Available to backorder	Rivet Blind 6Mm	£2.94 £2.45
24	HP42716-VE0-800 In stock	Bush Rr Wheel	£3.97 £3.31
