Honda HRG465C3 - PDEE - MADF 1400001- Rear Wheel - Push (PDEE only) Diagram

Description

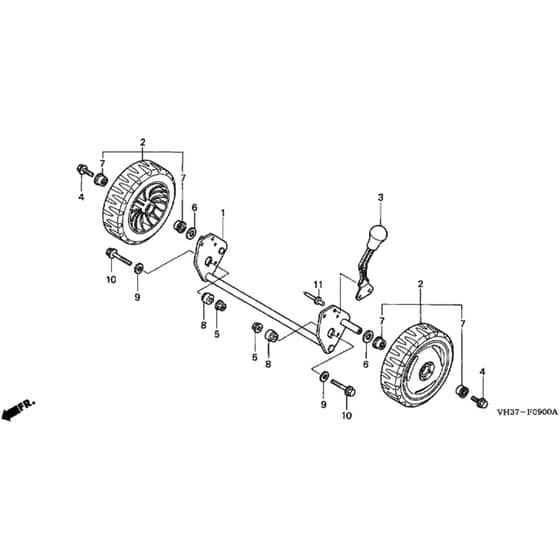

Honda HRG465C3 - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42310-VH4-000 Available to backorder	Shaft Comp Rr Axle	£60.52 £50.43

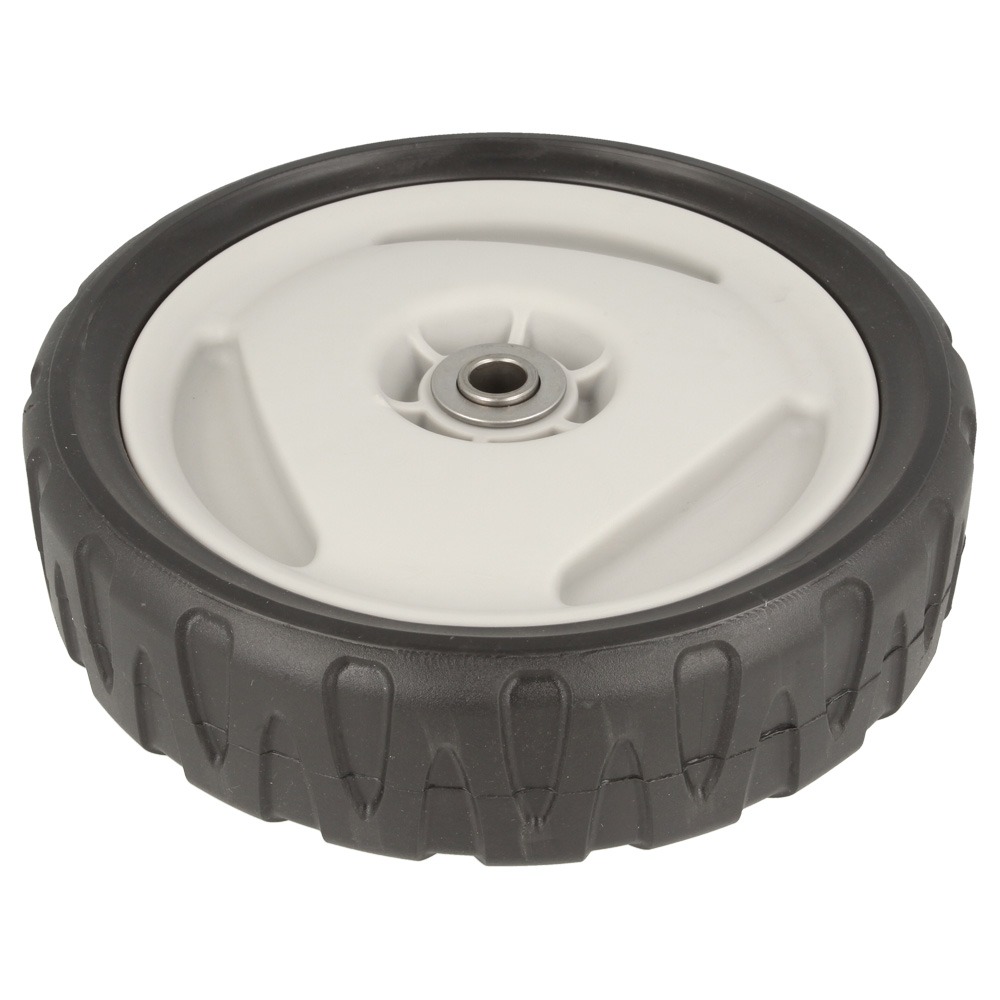

2	HP42710-VH3-000ZB Available to backorder	Wheel Comp Rr (Nha92R Gardenia White R)	£47.66 £39.72
3	HP42960-VH3-N10ZA In stock	Lever Comp Rr Height Adjusting	£28.76 £23.97
4	HP90110-VA4-000 In stock	Bolt Wheel	£6.44 £5.37
5	HP90115-659-003 In stock	Nut Self-Lock 8Mm (Clinch)	£1.19 £0.99
6	HP90455-VA2-000 In stock	Washer Wheel	£3.08 £2.57
7	HP91051-VE0-750 In stock	Bearing Radial Ball	£12.20 £10.17
9	HP94103-08000 In stock	Washer Plain 8Mm	£0.56 £0.47
11	HP90842-VH3-N10 Available to backorder	Rivet Blind 6Mm	£2.94 £2.45
