Honda HRG465C3 - PDEE - MADF 1400001- Front Wheel Diagram

Description

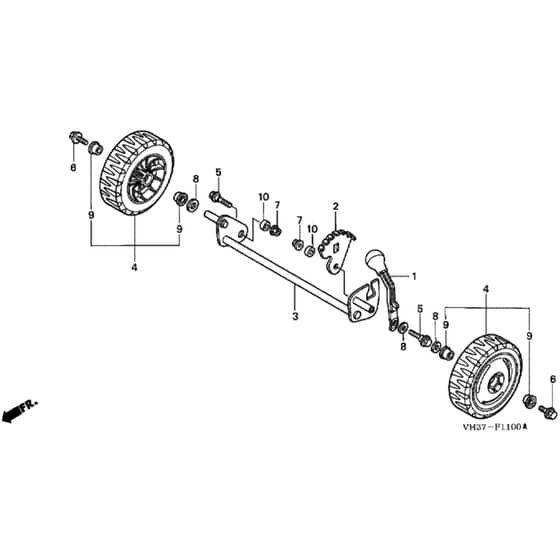

Honda HRG465C3 - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42950-VH3-N10ZA Available to backorder	Lever Comp Fr Height Adjusting	£16.88 £14.07
3	HP44310-VH4-000 Available to backorder	Shaft Comp Fr Axle	£46.14 £38.45
4	HP44710-VH3-000ZB Available to backorder	Wheel Comp Fr	£47.66 £39.72
5	HP90103-VG3-010 Available to backorder	Bolt Adjuster Arm	£4.03 £3.36
6	HP90110-VA4-000 In stock	Bolt Wheel	£6.44 £5.37
7	HP90115-659-003 In stock	Nut Self-Lock 8Mm (Clinch)	£1.19 £0.99
8	HP90455-VA2-000 In stock	Washer Wheel	£3.08 £2.57
9	HP91051-VE0-750 In stock	Bearing Radial Ball	£12.20 £10.17
