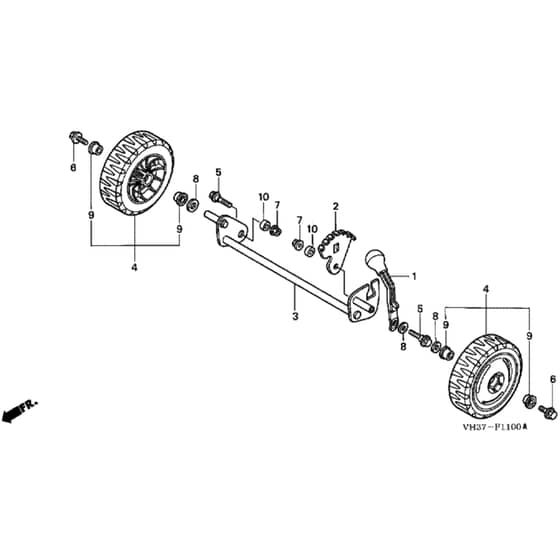

Honda HRG465C2 - SDEE - MADF 1100001-1211768 Front Wheel Diagram

Name: Honda HRG465C2 - SDEE - MADF 1100001-1211768 Front Wheel Diagram
SKU: hrg465c2_sdee_madf_1100001_1211768_front_wheel-group
Price: 0.99 GBP
Availability: InStock

Part No. hrg465c2_sdee_madf_1100001_1211768_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - SDEE - MADF 1100001-1211768 Front Wheel Diagram

Description

Honda HRG465C2 - SDEE Rotary Mower Parts Diagram

	Part No.	Details
3	HP44310-VH4-000 Available to backorder	Shaft Comp Fr Axle	£46.14 £38.45
4	HP44710-VH3-000ZA Available to backorder	Wheel Comp Fr Nh31 (Nh31 Mckinley White)	£39.58 £32.98
5	HP90103-VG3-010 Available to backorder	Bolt Adjuster Arm	£4.03 £3.36
6	HP90110-VA4-000 In stock	Bolt Wheel	£6.44 £5.37
7	HP90115-659-003 In stock	Nut Self-Lock 8Mm (Clinch)	£1.19 £0.99
8	HP90455-VA2-000 In stock	Washer Wheel	£3.08 £2.57
9	HP91051-VE0-750 In stock	Bearing Radial Ball	£12.20 £10.17
10	HP91551-VG3-000 Available to backorder	Collar Fr Adjusting To 1135208	£1.26 £1.05
