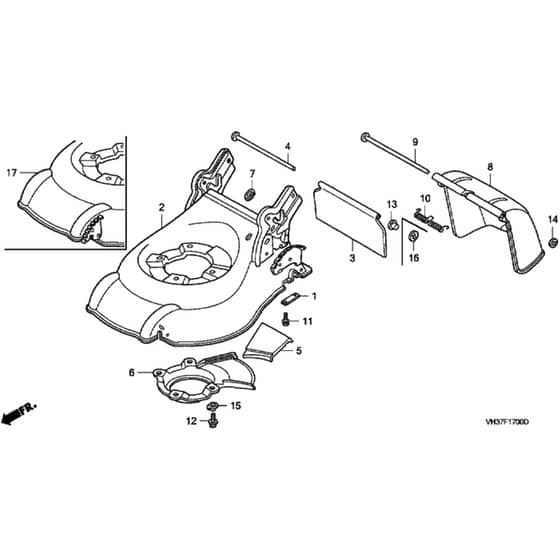

Honda HRG465C2 - SDEE - MADF 1100001-1211768 Cutter Housing Diagram

Name: Honda HRG465C2 - SDEE - MADF 1100001-1211768 Cutter Housing Diagram
SKU: hrg465c2_sdee_madf_1100001_1211768_cutter_housing-group
Price: 1.16 GBP
Availability: InStock

Part No. hrg465c2_sdee_madf_1100001_1211768_cutter_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - SDEE - MADF 1100001-1211768 Cutter Housing Diagram

Description

Honda HRG465C2 - SDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42938-VH3-850 Available to backorder	Holder Axle(Sdee)	£1.39 £1.16
2	HP76110-VH4-010ZA Available to backorder	Hsg Compcutter	£222.48 £185.40
4	HP76138-VH4-000 Available to backorder	Shaft Rr Shield	£16.49 £13.74
5	HP76143-VH4-010 In stock	Plate Guide	£11.26 £9.38
6	HP76147-VH4-010 Available to backorder	Cover Roto-Stop To 1124640	£29.16 £24.30
7	HP91651-VH3-850 Available to backorder	Grommet Cable(Sdee)From 1125480	£1.60 £1.33
8	HP76281-VH4-010ZA In stock	Guard Discharge (Nh105 Mat Black (#15-#20))	Was £40.87 £34.06 Special Price £17.99 £14.99
10	HP76284-VH3-000 Available to backorder	Spring Guard Return	£8.46 £7.05
11	HP93904-35210 Available to backorder	Screw Tapping 5X12(Sdee)	£1.86 £1.55
12	HP90102-VA4-000 Available to backorder	Bolt Engine Setting	£3.71 £3.09
13	HP90301-VA3-J01 In stock	Nut Push 8Mm	£2.88 £2.40
14	HP90407-VA9-K40 In stock	Washer Special 8Mm (Nut Push 8Mm)	£1.85 £1.54
15	HP90501-VH3-000 Available to backorder	Washer Roto-Stop Cover To 1124640	£2.36 £1.97
17	HP76110-VH4-851ZA Available to backorder	Hsg Compcutter	£204.72 £170.60
