Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Rotary Blade Diagram

Name: Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Rotary Blade Diagram
SKU: hrg465c2_sdee_a_madf_1100001_1399999_rotary_blade-group
Price: 0.49 GBP
Availability: InStock

Part No. hrg465c2_sdee_a_madf_1100001_1399999_rotary_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Rotary Blade Diagram

Description

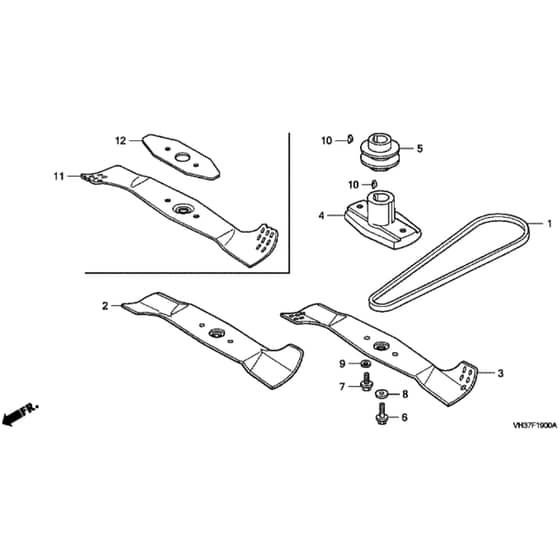

Honda HRG465C2 - SDEE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP22431-VE0-L02 In stock	V-Belt (Z-32)(Sdee)	£32.34 £26.95
3	HP72511-VH4-000 In stock	Blade Rotary	£52.20 £43.50
4	HP72611-VH3-000 Available to backorder	Holder Blade	£46.84 £39.03
5	HP75162-VG8-750 In stock	Pulley Drive(Sdee)	£43.25 £36.04
6	HP90103-SV4-013 Available to backorder	Bolt Flange 10X30 From 1312629	£9.89 £8.24
7	HP90105-960-710 In stock	Bolt Hex 10X20	£2.99 £2.49
8	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
9	HP90481-430-000 In stock	Washer Spring 10Mm	£1.28 £1.07
10	HP94401-16150 In stock	Key Woodruff 16X15(Sdee)	£0.59 £0.49
