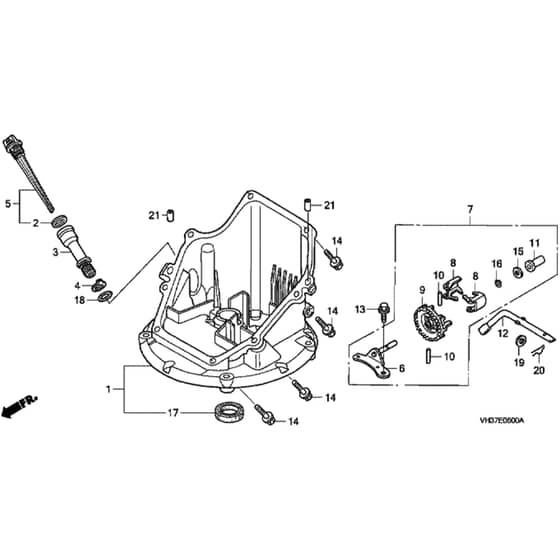

Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Oil Pan Diagram

Name: Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Oil Pan Diagram
SKU: hrg465c2_sdee_a_madf_1100001_1399999_oil_pan-group
Price: 0.7 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Oil Pan Diagram

Description

Honda HRG465C2 - SDEE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-ZM0-406 Available to backorder	Pan Assy Oil	£157.44 £131.20
2	HP15625-ZE6-000 Available to backorder	Packing Oil Filler Cap	£3.56 £2.97
3	HP15631-ZM0-000 Available to backorder	Extension Oil Filler	£8.59 £7.16
4	HP15639-ZM0-000 Available to backorder	Washer Extension Lock	£0.84 £0.70
6	HP16508-ZM0-010 Available to backorder	Shaft Comp Governor Holder	£6.90 £5.75
7	HP16510-ZM0-010 Available to backorder	Governor Assy	£21.83 £18.19
8	HP16511-ZL8-000 Available to backorder	Weight Governor	£1.85 £1.54
9	HP16512-ZM0-000 Available to backorder	Holder Governor Weight	£6.77 £5.64
10	HP16513-ZE1-000 Available to backorder	Pin Governor Weight	£1.96 £1.63
11	HP16531-ZE1-000 Available to backorder	Slider Governor	£4.15 £3.46
12	HP16541-ZM0-000 Available to backorder	Shaft Governor Arm	£4.98 £4.15
13	HP90014-952-000 Available to backorder	Bolt Flange 6X14 (Ct200)	£3.73 £3.11
14	HP90121-952-000 Available to backorder	Bolt Flange 6X25 (Ct200)	£2.84 £2.37
15	HP90451-ZE1-000 Available to backorder	Washer Thrust 6Mm	£1.92 £1.60
16	HP90602-ZE1-000 Available to backorder	Clip Governor Holder	£3.70 £3.08
17	HP91202-ZL8-003 Available to backorder	Oil Seal 28X4125X6	£8.99 £7.49
19	HP94101-06800 Available to backorder	Washer Plain 6Mm	£0.96 £0.80
20	HP94251-08000 In stock	Pin Lock 8Mm	£1.86 £1.55
21	HP94301-08200 Available to backorder	Dowel Pin 8X20	£2.38 £1.98
