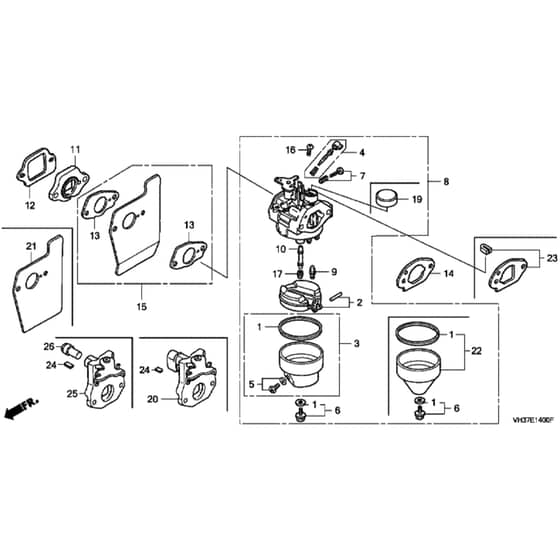

Honda HRG465C2 - SDEE/A - MADF 1100001-1399999 Carburettor Diagram

Description

Honda HRG465C2 - SDEE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-883-015 In stock	Packing Set	£13.36 £11.13
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
3	HP16015-887-782 Available to backorder	Chamber Set Float (Carburetor No)Bb64F B	£45.56 £37.97
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
5	HP16024-ZE1-811 Available to backorder	Screw Set Drain (Carb No)Bb64F B	£13.69 £11.41
7	HP16029-ZG0-901 Available to backorder	Screw Set (Throttle Stop)	£14.30 £11.92
9	HP16155-ZM0-013 In stock	Valve Float	£38.47 £32.06
10	HP16166-ZM1-003 Available to backorder	Nozzle Main	£38.39 £31.99
11	HP16211-ZL8-000 In stock	Insulator Carburetor	£5.21 £4.34
12	HP16212-ZL8-000 In stock	Packing Insulator	£3.07 £2.56
13	HP16221-883-800 In stock	Packing Carburetor To 2937994	£2.46 £2.05
14	HP16228-ZL8-000 In stock	Packing Carburetor	£3.14 £2.62
15	HP19650-ZM0-000 In stock	Guide Comp Air To 2937994	£12.07 £10.06
21	HP19651-Z0L-000 In stock	Guide Air From 2937995	£4.18 £3.48
22	HP16015-Z0L-881 Available to backorder	Chamber Set Float (Carb No)Bb64F C	£57.95 £48.29
