Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Rear Wheel - Self Propelled (SDEE Only) Diagram

Name: Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Rear Wheel - Self Propelled (SDEE Only) Diagram
SKU: hrg465c2_pdee_a_madf_1100001_1399999_rear_wheel_self_propelled_s
Price: 0.33 GBP
Availability: InStock

Part No. hrg465c2_pdee_a_madf_1100001_1399999_rear_wheel_self_propelled_s

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Rear Wheel - Self Propelled (SDEE Only) Diagram

Description

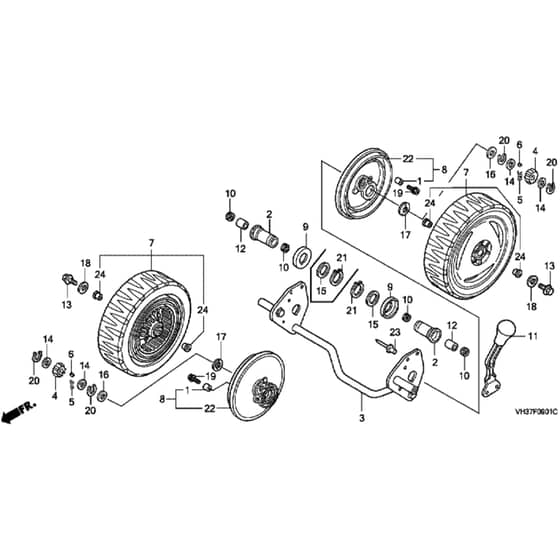

Honda HRG465C2 - PDEE/A Rotary Mower Parts Diagram

	Part No.	Details
2	HP41418-VE0-800 Available to backorder	Drive Shaft Collar	£14.96 £12.47
3	HP42310-VH4-850 Available to backorder	Rear Axle Shaft	£60.52 £50.43
4	HP42661-VH3-850 In stock	Pinion Gear	£7.58 £6.32
5	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
6	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
7	HP42710-VH3-851ZA Available to backorder	Wheel	£39.58 £32.98
9	HP42868-VA9-K40 Available to backorder	Wheel Cap	£1.57 £1.31
10	HP42944-VA2-702 Available to backorder	Dust Seal 12Mm	£7.68 £6.40
11	HP42960-VH3-000ZA In stock	Lever Assy	£28.76 £23.97
12	HP44327-VH3-Y10 Available to backorder	Drive Shaft Bush	£13.09 £10.91
13	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
14	HP90452-166-600 In stock	Washer	£0.40 £0.33
15	HP90453-KA3-710 Available to backorder	Thrust Washer	£9.06 £7.55
16	HP90459-360-000 Available to backorder	Thrust Washer	£3.60 £3.00
17	HP90505-VA9-K40 In stock	Washer 13Mm	£2.20 £1.83
18	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.24 £3.53
20	HP94510-12000 In stock	External Circlip 12Mm	£1.19 £0.99
21	HP94510-20000 Available to backorder	External Circlip 20Mm	£1.72 £1.43
22	HP42866-VE0-800 Available to backorder	Wheel Cover	£5.18 £4.32
23	HP90842-VA9-B50 Available to backorder	Rivet 6.0Mm	£1.03 £0.86
24	HP42716-VE0-800 In stock	Wheel Bush	£3.97 £3.31
