Honda HRG465C1 - PDEE - MADF 1000001-1099999 Rear Wheel - Push (PDEE only) Diagram

Name: Honda HRG465C1 - PDEE - MADF 1000001-1099999 Rear Wheel - Push (PDEE only) Diagram
SKU: hrg465c1_pdee_madf_1000001_1099999_rear_wheel_push_pdee_only_-gr
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C1 - PDEE - MADF 1000001-1099999 Rear Wheel - Push (PDEE only) Diagram

Description

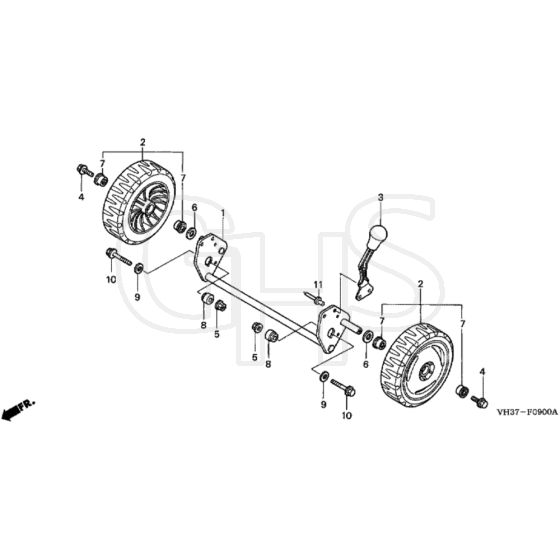

Honda HRG465C1 - PDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42310-VH4-000 Available to backorder	Shaft	£58.92 £49.10
2	HP42710-VH3-000ZA Available to backorder	Rear Wheel	£40.16 £33.47
3	HP42960-VH3-000ZA Available to backorder	Lever Assy	£26.84 £22.37
4	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
5	HP90115-659-003 In stock	Nut	£1.10 £0.92
6	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
7	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30
8	HP91554-VH3-000 Available to backorder	Collar	£4.92 £4.10
9	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
10	HP93201-080-300A Available to backorder	Bolt	£1.66 £1.38
11	HP90842-VA9-B50 Available to backorder	Rivet 6.0Mm	£1.04 £0.87
