Honda HRG465C1 - PDE - MACF 1000001-1099999 Front Wheel Diagram

Name: Honda HRG465C1 - PDE - MACF 1000001-1099999 Front Wheel Diagram
SKU: hrg465c1_pde_macf_1000001_1099999_front_wheel-group
Price: 0.99 GBP
Availability: InStock

Part No. hrg465c1_pde_macf_1000001_1099999_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

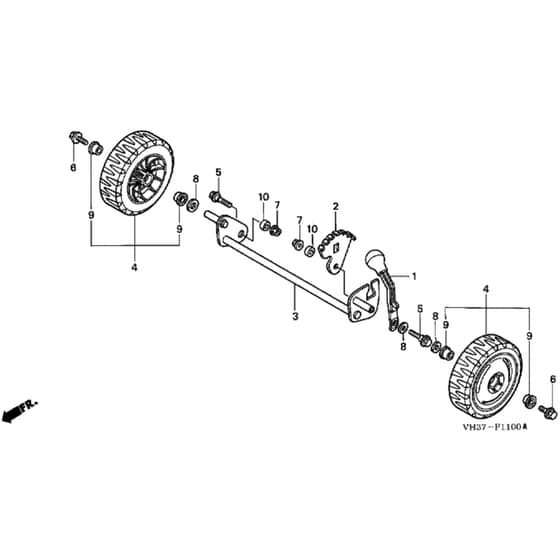

Honda HRG465C1 - PDE - MACF 1000001-1099999 Front Wheel Diagram

Description

Honda HRG465C1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42950-VH3-000 Available to backorder	Front Height Lever Assy	£15.54 £12.95
2	HP42981-VH3-000 Available to backorder	Adjuster Panel	£5.92 £4.93
3	HP44310-VH4-000 Available to backorder	Front Axle	£46.14 £38.45
4	HP44710-VH3-000ZA Available to backorder	Front Wheel	£39.58 £32.98
5	HP90103-VG3-010 Available to backorder	Adjuster Arm Bolt	£4.03 £3.36
6	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
7	HP90115-659-003 In stock	Nut	£1.19 £0.99
8	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
9	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
10	HP91551-VG3-000 Available to backorder	Adjusting Collar	£1.26 £1.05
