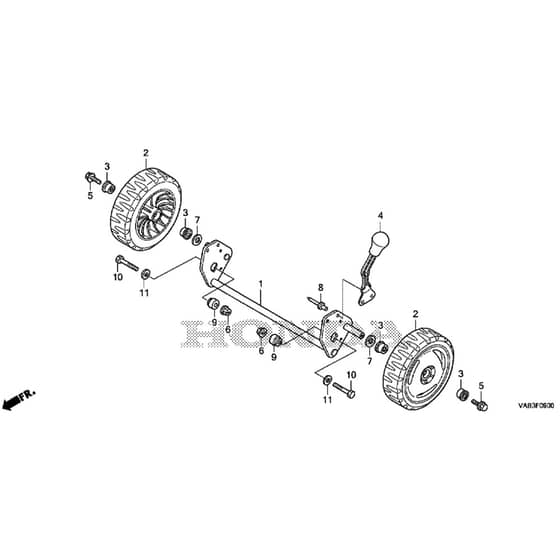

Honda HRG416XB-PEUA - Rear Wheel Diagram

Description

Honda HRG416XB-PEUA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42310-VH3-R10 Available to backorder	1 Axle Shaft	£77.52 £64.60
2	HP42710-VH3-R10ZA In stock	2 Rear Wheel	£39.78 £33.15
3	HP42716-VH3-R11 In stock	3 Wheel Bush	£5.28 £4.40
4	HP42960-VH3-R10 In stock	4 Rear Height Lever Assy	£26.84 £22.37
5	HP90110-VA4-000 In stock	5 Wheel Bolt	£5.76 £4.80
6	HP90115-659-003 In stock	6 Nut	£1.10 £0.92
7	HP90455-VA2-000 Available to backorder	7 Wheel Washer	£2.88 £2.40
8	HP90842-VH3-N10 Available to backorder	8 Rivet 6Mm	£3.10 £2.58
9	HP91554-VH3-R10 Available to backorder	9 Collar	£4.52 £3.77
10	HP93201-080-300A Available to backorder	10 Bolt	£1.66 £1.38
11	HP94103-08000 In stock	11 Plain Washer 8Mm	£0.47 £0.39
