Honda HRG416XB-PEUA - Motor Diagram

Description

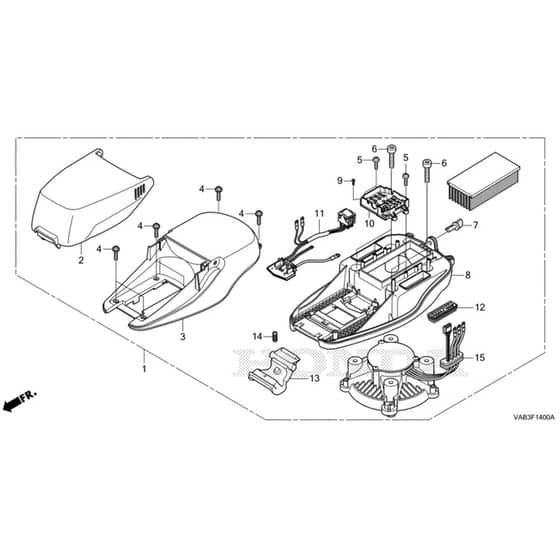

Honda HRG416XB-PEUA Rotary Mower Parts Diagram

	Part No.	Details
1	HP36001-VAB-E11 Available to backorder	1 Powerhead Assembly	£1,642.16 £1,368.47
2	HP36002-VAA-E11 Available to backorder	2 Battery Cover	£108.34 £90.28
3	HP36003-VAA-E11 Available to backorder	3 Motor Cover	£112.22 £93.52
4	HP36004-VAA-E11 Available to backorder	4 Screw	£11.78 £9.82
5	HP36007-VAA-E11 Available to backorder	5 Screw	£11.78 £9.82
6	HP36010-VAA-E11 Available to backorder	6 Screw	£15.72 £13.10
7	HP36012-VAA-E11 Available to backorder	7 Key	£3.28 £2.73
8	HP36016-VAA-E11 Available to backorder	8 Base Housing	£136.62 £113.85
9	HP36017-VAA-E11 Available to backorder	9 Screw	£11.78 £9.82
10	HP36018-VAB-E11 Available to backorder	10 Electronic Module	£486.00 £405.00
11	HP36019-VAB-E11 Available to backorder	11 Internal Wiring	£223.92 £186.60
12	HP36020-VAA-E11 Available to backorder	12 Sealing Rubber	£30.00 £25.00
13	HP36021-VAA-E11 Available to backorder	13 Release Lever	£22.84 £19.03
14	HP36022-VAA-E11 Available to backorder	14 Spring	£22.36 £18.63
15	HP36023-VAB-E11 Available to backorder	15 Brushless Dc Motor	£883.20 £736.00
